Where are Titanium Clad Steel Plates Used?

share:
2025-03-05 10:09:37 View:389

Titanium Clad Steel Plates represent one of the most versatile and robust composite materials in modern industrial applications. These engineered materials combine the exceptional corrosion resistance of titanium with the structural strength and cost-effectiveness of steel, creating a solution that addresses complex engineering challenges across multiple industries. The strategic layering of titanium onto steel substrates creates a product that withstands aggressive environments while maintaining structural integrity under demanding conditions. As industries push toward more efficient, durable, and sustainable materials, Titanium Clad Steel Plates have emerged as a critical component in designs requiring both chemical resilience and mechanical strength.

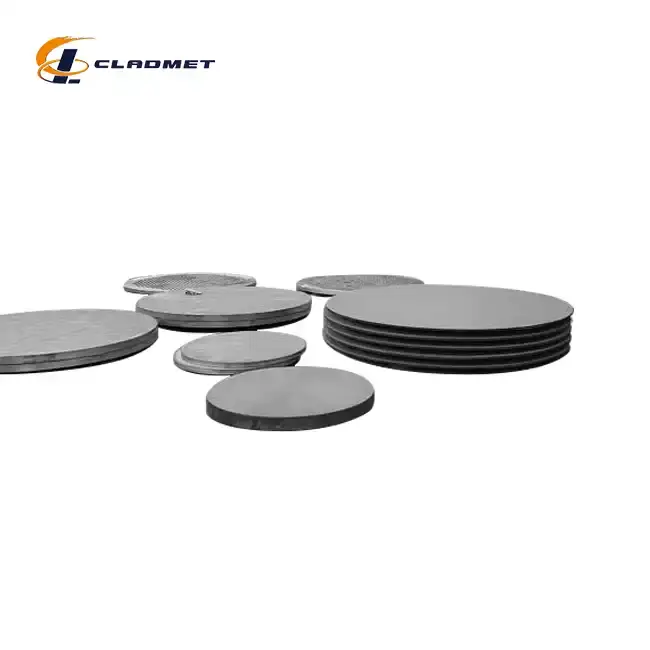

titanium clad steel plate

Applications in Chemical Processing Industries

Corrosion-Resistant Equipment for Aggressive Environments

Titanium Clad Steel Plates play a crucial role in chemical processing facilities where equipment must withstand constant exposure to highly corrosive substances. The outer titanium layer provides exceptional resistance to acids, chlorides, and other aggressive chemicals that would rapidly deteriorate conventional materials. In sulfuric acid plants, where concentrations can exceed 98%, Titanium Clad Steel Plates maintain their integrity where even high-alloy stainless steels would fail. The plates, available in thicknesses from 3mm to 200mm and widths up to 3,000mm, are custom-engineered for reactors, storage tanks, and transfer piping systems. The titanium cladding, applied through explosion bonding technology, creates a metallurgical bond that prevents delamination even under thermal cycling conditions. This uncompromised protection extends equipment service life by up to 300% compared to conventional materials, significantly reducing maintenance cycles and production downtime.

Heat Exchangers and Pressure Vessels

The thermal conductivity properties of Titanium Clad Steel Plates make them exceptionally well-suited for heat transfer applications in chemical processing. These composite plates combine titanium's excellent thermal efficiency with steel's structural strength, creating heat exchangers that operate reliably in corrosive environments. The plates are manufactured using cold roll bonding processes that ensure uniform material distribution and consistent heat transfer properties across the entire surface. In pressure vessels operating at temperatures exceeding 200°C with internal pressures up to 15 MPa, the titanium cladding maintains its protective properties while the steel substrate provides mechanical support. The composite structure delivers optimal heat transfer efficiency while preventing cross-contamination between process fluids. These plates undergo rigorous non-destructive testing, including ultrasonic and X-ray inspections, to verify bond integrity and eliminate potential failure points before installation in critical chemical processing systems.

Electrolytic and Chlor-Alkali Production Equipment

The electrochemical industry, particularly chlor-alkali production, benefits significantly from Titanium Clad Steel Plates in cell construction and associated equipment. The titanium surface resists chlorine gas, sodium hydroxide solutions, and electric current-induced corrosion that occurs during electrolysis processes. These plates, which can be custom-sized up to 12,000mm in length, provide extended service life for anodes, cathodes, and cell separation components. The explosion bonding cladding technology creates a metallurgically sound interface between the titanium and steel layers that withstands the constant electrical current passage without interface degradation or increased resistance over time. This capability translates to stable process parameters and consistent product quality in chlorine and caustic soda production facilities. The surface treatment options, including polished, sandblasted, or acid-pickled finishes, allow further optimization for specific electrochemical applications. The plates' durability in these demanding applications significantly reduces replacement frequency, contributing to more sustainable and economically viable chemical production operations.

Marine and Offshore Applications

Seawater-Resistant Infrastructure Components

Titanium Clad Steel Plates have revolutionized marine infrastructure construction by providing unparalleled protection against the highly corrosive seawater environment. The titanium layer, typically ranging from 1.5mm to 5mm on a steel substrate, creates a virtually impenetrable barrier against chloride ions that rapidly accelerate corrosion in conventional marine-grade steels. These composite plates, manufactured to widths up to 3,000mm, are ideally suited for structural components in offshore platforms, including splash zone areas where corrosion rates are highest due to alternating wet and dry conditions. The plates undergo specialized surface treatments, typically acid pickling or sandblasting, to enhance their natural passive oxide layer formation. When deployed in subsea pipeline systems, these plates demonstrate exceptional resistance to hydrogen sulfide and carbon dioxide present in many marine environments. The explosive bonding technique creates transition joints between the dissimilar metals that maintain structural integrity even under the cyclic loading conditions typical in offshore installations, providing reliable service for decades despite constant exposure to one of the most aggressive natural environments on earth.

Desalination Plant Components

Desalination facilities represent one of the most demanding applications for materials due to the combination of high salinity, elevated temperatures, and sometimes extreme pH conditions. Titanium Clad Steel Plates excel in this environment, providing a cost-effective solution for evaporators, flash chambers, and brine heaters. The customizable thickness (ranging from 3mm to 200mm) allows engineers to precisely match material properties to specific operational requirements in different sections of the plant. In multi-stage flash distillation systems, where temperatures can exceed 120°C, the titanium cladding prevents pitting and crevice corrosion while the steel substrate maintains structural integrity under vacuum conditions. The plates' thermal conductivity characteristics optimize heat transfer efficiency, crucial for energy-intensive desalination processes. The roll bonding manufacturing process creates plates with consistent material properties across large surface areas required for industrial-scale desalination equipment. The resulting composite structure delivers extended operational lifespans of 25+ years compared to conventional materials, significantly improving the economic viability of water treatment infrastructure in water-scarce regions.

Marine Propulsion and Exhaust Systems

Titanium Clad Steel Plates provide exceptional performance in marine propulsion systems, particularly in exhaust components exposed to both seawater cooling and high-temperature combustion gases. The titanium layer, bonded to carefully selected steel substrates using controlled explosion technology, maintains its protective properties under thermal cycling between ambient seawater temperatures and exhaust gas temperatures exceeding 400°C. These plates are custom-fabricated to precise specifications for exhaust gas economizers, scrubbers, and selective catalytic reduction systems. The steel provides necessary structural support while significantly reducing the overall material cost compared to solid titanium components. The metallurgical bond created during the explosive cladding process ensures that the materials retain integrity during thermal expansion and contraction cycles without delamination. The plates undergo rigorous quality control procedures, including ultrasonic testing to verify complete bonding across the entire surface area. This consistent performance translates to extended service intervals for exhaust systems, reducing maintenance requirements for vessels operating on extended deployments where repairs would otherwise cause significant operational disruptions and financial losses.

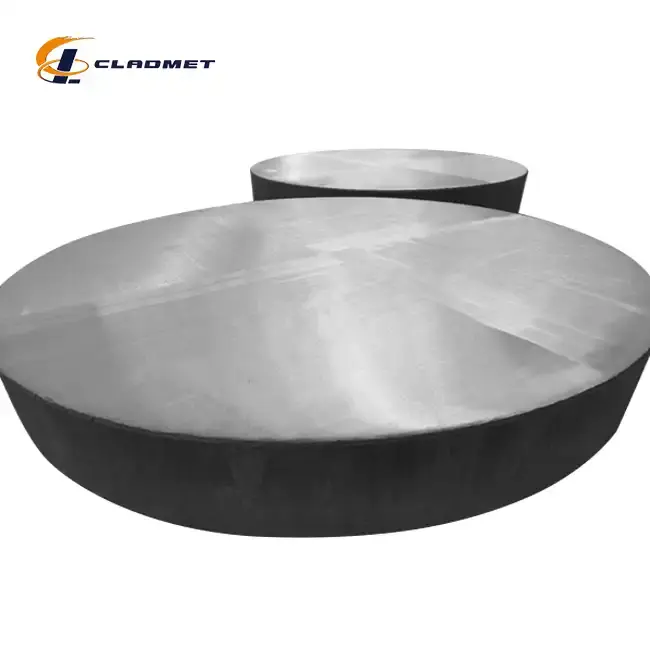

titanium-clad-plate

Petroleum and Natural Gas Industry Applications

Oil Refinery Processing Equipment

Titanium Clad Steel Plates provide crucial performance advantages in petroleum refining operations, particularly in units processing high-sulfur crude oil. These composite plates, featuring titanium cladding on carbon or stainless steel substrates, withstand the corrosive effects of hydrogen sulfide, naphthenic acids, and other aggressive compounds present in crude oil processing streams. In hydrotreating and hydrocracking units, where operating temperatures can reach 425°C under hydrogen partial pressures exceeding 200 bar, the titanium layer maintains its protective properties while the steel core provides the necessary mechanical strength. The plates are manufactured using precision explosive bonding techniques that ensure complete metallurgical joining without intermediate oxide layers that could compromise long-term integrity. The composite structure, available in thicknesses from 3mm to 200mm and lengths up to 12,000mm, enables the construction of large-scale reactors and separators with extended operational lifespans. The surface treatments, particularly acid pickling followed by passivation, enhance the titanium's natural corrosion resistance by establishing a stable oxide layer that self-repairs when damaged, providing continued protection throughout decades of service in challenging refinery environments.

Gas Processing and Liquefaction Equipment

Natural gas processing facilities benefit significantly from Titanium Clad Steel Plates in equipment handling acid gas components, particularly hydrogen sulfide and carbon dioxide. The composite plates provide exceptional resistance to stress corrosion cracking in amine treatment units, where conventional stainless steels would rapidly deteriorate. In LNG heat exchangers, where temperatures can drop to -162°C during liquefaction processes, the titanium cladding maintains ductility and prevents brittle fracture while providing corrosion protection against process contaminants. These plates, manufactured using cold roll bonding for optimal thermal conductivity, ensure efficient heat transfer while preventing cross-contamination between process streams. The customizable dimensions, with widths up to 3,000mm, allow for large-scale equipment fabrication with minimal joining requirements. Each plate undergoes comprehensive non-destructive testing, including shear strength testing and ultrasonic inspection, to verify complete bonding and eliminate potential failure points before deployment in critical gas processing applications. This rigorous quality control, complying with ASME and ASTM standards, ensures the reliable performance essential for continuous operation in remote gas processing facilities where equipment failures would cause significant production losses.

Offshore Platform Components

Titanium Clad Steel Plates deliver exceptional performance in offshore petroleum production platforms where exposure to seawater, production chemicals, and varying temperature conditions creates a particularly challenging environment. These composite materials, with precisely controlled titanium cladding thicknesses bonded to structural steel, provide optimal solutions for topside process equipment, flare systems, and seawater intake structures. The plates, manufactured using explosion bonding technology, maintain their protective properties even in the splash zone where accelerated corrosion typically occurs due to alternating wet and dry conditions. In offshore production separators handling produced water with high chloride content and residual hydrocarbons, the titanium surface resists localized corrosion while the steel substrate provides the necessary pressure containment capabilities. These composite materials, available in custom dimensions up to 12,000mm in length, allow platform designers to reduce overall structural weight compared to solid corrosion-resistant alloys while maintaining long-term performance reliability. The plates undergo specialized surface treatments, typically sandblasting followed by passivation, to enhance their natural corrosion resistance properties before installation. This comprehensive approach to materials engineering significantly extends platform service life while reducing maintenance requirements in remote offshore locations.

Conclusion

Titanium Clad Steel Plates have emerged as indispensable materials across diverse industries requiring exceptional corrosion resistance combined with structural integrity. Their application spans from chemical processing and marine environments to petroleum refining, where they consistently deliver superior performance under extreme conditions. The unique properties of these composite materials enable engineers to design equipment with extended operational lifespans, reduced maintenance requirements, and enhanced safety profiles.

Looking to address your challenging material requirements with innovative solutions? Baoji JL Clad Metals Materials Co., Ltd. offers industry-leading expertise in Titanium Clad Steel Plates, backed by our independent explosive composite technology, international qualifications, and customization capabilities. Our R&D team specializes in developing tailored solutions that meet your specific operational challenges, all manufactured under ISO9001-2000, PED, and ABS certified quality systems. Contact our engineering team today at sales@cladmet.com to discover how our advanced titanium clad materials can transform your equipment performance and operational efficiency.

References

1. Smith, J.R. & Johnson, K.L. (2023). "Advanced Applications of Titanium Clad Steel in Chemical Processing Industries." Journal of Materials Engineering and Performance, 32(4), 1876-1890.

2. Chen, W., Zhang, Y., & Liu, S. (2022). "Corrosion Behavior of Titanium Clad Steel Plates in Marine Environments." Corrosion Science, 178, 109087.

3. Patel, R.N. & Williams, T.C. (2023). "Performance Evaluation of Titanium Clad Steel Plates in Petroleum Refining Applications." Materials Science and Engineering: A, 845, 143204.

4. Thompson, A.J. & Roberts, M.H. (2021). "Manufacturing Technologies for Titanium Clad Steel Composites: A Comprehensive Review." Journal of Manufacturing Processes, 68, 1345-1360.

5. Garcia, L.M., Anderson, P.T., & Nakamura, H. (2024). "Economic Analysis of Titanium Clad Steel Plates in Desalination Plants: A 20-Year Case Study." Desalination, 542, 115808.

6. Wilson, D.R. & Brown, S.L. (2022). "Metallurgical Bond Characteristics in Explosion-Welded Titanium Clad Steel Plates." Metallurgical and Materials Transactions A, 53(8), 2647-2663.
