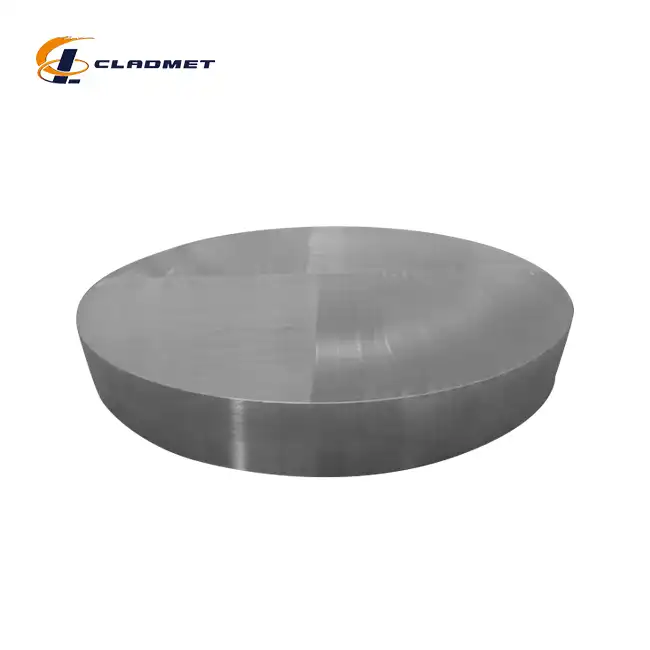

Titanium Stainless Steel clad plate

Substrate and Cover Materials:Substrate: Copper, Cover: Titanium
Available Sizes:Standard and custom sizes available upon request
Product Applications:Used in electroplating, chemical, and marine industries
Processing Technology:Explosive bonding and hot-rolled processing techniques
Quality Control and Testing: Strict testing ensures adherence to ISO9001-2000, PED, ABS standards
Product Implementation Standards:ASME, ASTM, JIS certified
Delivery:Available via sea, air, and express shipping
Packaging:Secure wooden crates for international transport

Send Inquiry

Product Description

Product Overview

Titanium Stainless Steel Clad Plate (Titanium Stainless Steel Clad Plate) is a high-performance composite metal material that uses explosive welding or hot rolling cladding technology to firmly combine pure titanium (Gr1, Gr2) with stainless steel (304, 316L, 321, 2205, 2507). The product has the excellent corrosion resistance of titanium and the strength and good processing performance of stainless steel, and is suitable for marine engineering, petrochemical, food and pharmaceutical, aerospace, heat exchange equipment and other industries.

Performance advantage

✅ Highly resistant to corrosion and suitable for highly corrosive environments

• Titanium layer has high corrosion resistance to acid, alkali, seawater, chloride, and oxidizing environments, and is especially suitable for marine engineering, seawater desalination, chemical equipment, and other fields.

• It is more resistant to corrosion than stainless steel alone, which can effectively prolong the service life of equipment and reduce maintenance costs.

✅ Excellent mechanical properties, high strength, easy to process

• The stainless steel layer provides good mechanical strength, high temperature resistance, and impact resistance, making it suitable for the manufacturing of equipment that requires high-strength structures.

• Compared with pure titanium plate, composite plate is easier to process and can be processed by cutting, bending, welding, stamping and other processes.

✅ High bonding strength, long-term use without peeling

• Explosive welding or hot rolling is used to ensure that the titanium layer and the stainless steel layer form a metallurgical bond, with a bond strength of 150-200 MPa and impact resistance and peeling resistance.

✅ More cost-effective than pure titanium plate

• The cost of pure titanium plate is higher, while the cost of titanium stainless steel composite plate can be reduced by 30% to 50%, while maintaining the corrosion resistance of titanium, which is suitable for cost-effective application scenarios.

✅ Environmental & sanitary applications

• The titanium layer is biocompatible and non-toxic, suitable for food processing, medical equipment and other industries, and meets FDA standards.

Technical parameters

Project	Numerical value	Test standard
Titanium layer grade	Gr1, Gr2, Gr5	ASTM B265, GB/T 3621
Stainless steel grade	304, 316L, 321, 2205, 2507	ASTM A240, GB/T 3280
Titanium layer thickness	0.5mm - 10mm	ASTM B898, GB/T 8547-2013
Stainless steel layer thickness	2mm - 100mm	ASTM A240, GB/T 3280
Bond strength	150 - 200 MPa	ASTM B898, GB/T 8547-2013
Tensile strength	≥400 MPa (stainless steel substrate)	ASTM E8
Corrosion resistance	Acid and alkali resistance, seawater environment resistance	ASTM G85
Maximum size	2000mm x 6000mm	Customizable
Processing method	Shearing, bending, stamping, welding	Suitable for different needs

Production technology

1️⃣ Explosive Welding

• Through the impact of high-energy explosives, titanium and stainless steel can form a metallurgical bonding layer in a very short time, with extremely high bonding strength.

• Suitable for the manufacture of large-area titanium stainless steel composite plates, with uniform bonding interface, no pores, and no need for additional welding of filler metals.

2️⃣ Hot Rolling Cladding

• Rolling the titanium and stainless steel layers into one under high temperature and high pressure, the bonding surface is dense and the metal streamline is complete.

• Suitable for mass production, with better surface quality and uniform thickness.

Application industry

Marine engineering: seawater desalination equipment, ship anti-corrosive structural parts, marine anti-corrosive layer

Petrochemical industry: storage tanks, heat exchangers, pressure vessels, reactors, chemical pipelines

Food & medicine: food processing equipment, pharmaceutical grade reactor, aseptic storage tank

Aerospace: Lightweight high-strength structural components, corrosion-resistant cabin

Nuclear power & energy: nuclear power equipment, desulfurization devices, heat exchange systems

OEM Service

We offer custom plate solutions tailored to your specific requirements. Our OEM service includes product customization, design support, and private labeling to ensure your products meet the highest standards.

FAQs

❓ 1. Can the thickness of the titanium layer of the titanium stainless steel composite plate be customized?

✅ Yes, we can provide 0.5mm-10mm titanium layer thickness and can customize the overall specifications.

❓ 2. What is the bonding strength of the composite plate?

✅ Bonding strength can reach 150-200 MPa, in line with ASTM B898, GB/T 8547-2013 standards, long-term use without peeling.

❓ 3. Is the composite board suitable for food processing?

✅ Yes, Titanium layer has non-toxic, antibacterial, corrosion resistance properties, can be used in food, pharmaceutical grade equipment, in line with FDA standards.

❓ 4. Can Titanium stainless steel composite plate be welded?

✅ Special welding process (such as titanium welding + stainless steel welding) can be used to ensure the corrosion resistance of the weld.

❓ 5. Do you provide test reports?

✅ Yes,we provide SGS, TÜV, BV certified third-party test reports to ensure that the quality meets international standards.

Why choose us?

20 + years of professional production experience, leading the industry

We have over 20 years of experience in manufacturing metal composites, providing high-quality composites to customers around the world.

Advanced production process to ensure high quality combination

The use of explosive welding and hot rolling composite two core technologies ensures that titanium and stainless steel form a strong metallurgical bonding layer, resistant to peeling, impact, and long-term use without delamination.

Strict quality inspection, in line with international standards

• Ultrasonic flaw detection (UT): ensure no pores and no delamination

• Metallographic Analysis: Verifying the effect of metallurgical bonding

•Tensile test: Testing the bond strength

•Corrosion Resistance Test: Ensure stable operation in acid-base environments

Flexible customization, fast delivery

• Support small batch samples & mass production

• Global logistics distribution to ensure fast delivery

Recognized by global customers and widely used

Our titanium stainless steel composite plates are exported to South East Asia, Europe, America, the Middle East and other countries and regions, and are widely used in marine engineering, petrochemical, electric power, food and medicine industries, and are deeply trusted by customers.
