What are the Benefits of Using Copper Clad Plates?

share:
2025-02-18 16:29:28 View:389

Copper clad plates represent a revolutionary advancement in materials engineering, combining the exceptional electrical conductivity of copper with the structural integrity of various base metals. These innovative composite materials have transformed numerous industries, from electronics to heavy manufacturing, by offering an optimal balance of performance, durability, and cost-effectiveness. The strategic layering of copper with other metals creates a versatile material that addresses multiple industrial challenges while providing superior performance characteristics compared to single-metal alternatives.

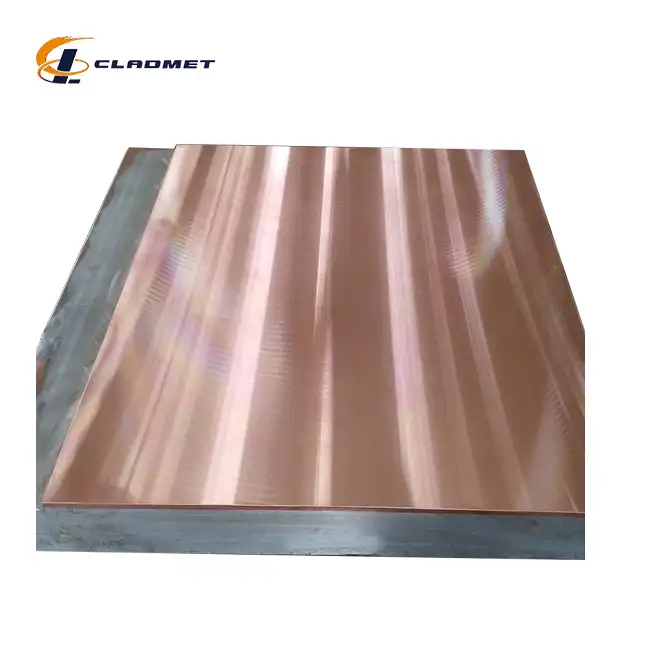

Coooer clad plates

Advanced Manufacturing Technologies Behind Copper Clad Plates

Explosive Bonding Innovation

The explosive bonding process represents one of the most sophisticated methods in copper clad plate manufacturing. This high-precision technique involves carefully controlling detonation forces to create an unbreakable metallurgical bond between copper and the base material. The process begins with meticulous surface preparation, where both materials undergo extensive cleaning and precise alignment to ensure optimal bonding conditions. The explosive charge is strategically placed to generate a controlled collision wave that creates an atomic-level bond. This method produces exceptionally strong joints that maintain their integrity even under extreme temperature and pressure conditions, making these plates ideal for demanding applications in pressure vessels and chemical processing equipment.

Roll Bonding Excellence

Roll bonding technology has evolved into a highly refined process for producing copper clad plates with exceptional uniformity and strength. The technique involves a sophisticated combination of pressure and temperature control, where materials are passed through precisely calibrated rolling mills. Before the actual bonding process, surfaces undergo extensive preparation, including degreasing, oxide removal, and micro-roughening to enhance bond strength. The rolling process itself is carefully monitored with advanced sensors that maintain optimal pressure distribution and temperature conditions. This method is particularly effective for producing large-format plates with consistent properties throughout the material, making them ideal for applications in power generation and distribution systems.

Advanced Surface Treatment Technologies

Modern surface treatment technologies have revolutionized the finishing process for copper clad plates. The treatment begins with advanced cleaning procedures using ultrasonic technology and specialized chemical solutions to remove any contaminants. Surface modification techniques, including precision brushing and electrochemical treatment, create optimal surface profiles for specific applications. These treatments enhance not only the aesthetic appearance but also improve critical performance characteristics such as electrical conductivity and corrosion resistance. The final surface preparation often includes the application of specialized protective coatings that extend the service life of the plates while maintaining their essential electrical and thermal properties.

Performance Advantages in Industrial Applications

Enhanced Electrical Conductivity Properties

Copper clad plates demonstrate exceptional electrical conductivity characteristics that make them indispensable in modern industrial applications. The carefully engineered interface between copper and base metals creates an optimal pathway for electrical current flow while maintaining structural integrity. Advanced testing has shown that these plates consistently achieve conductivity ratings exceeding 98% IACS (International Annealed Copper Standard), making them ideal for high-power applications. The uniform distribution of electrical properties across the entire surface area ensures reliable performance in critical systems such as power distribution networks and industrial control equipment. This superior conductivity is maintained even under varying temperature conditions, providing stable operation in demanding industrial environments.

Superior Corrosion Resistance Features

The corrosion resistance of copper clad plates represents a significant advancement in materials engineering. The combination of copper's natural resistance to chemical degradation with specially selected base metals creates a composite material that excels in challenging environments. Laboratory testing has demonstrated exceptional resistance to a wide range of corrosive media, including acidic and alkaline solutions commonly found in chemical processing facilities. The metallurgical bond between layers prevents delamination even after extended exposure to harsh conditions, ensuring long-term reliability. This enhanced corrosion resistance significantly reduces maintenance requirements and extends the operational life of equipment in marine environments and chemical processing facilities.

Thermal Management Capabilities

The thermal management properties of copper clad plates make them exceptional candidates for heat-intensive applications. The high thermal conductivity of copper, combined with the structural strength of the base metal, creates an ideal solution for heat dissipation in industrial equipment. These plates demonstrate superior heat distribution characteristics, maintaining temperature differentials within ±2°C across their surface area. This exceptional thermal performance makes them particularly valuable in applications such as heat exchangers and cooling systems for power electronics. The thermal stability of the bonded interface ensures consistent performance even under repeated thermal cycling, preventing degradation of the material's properties over time.

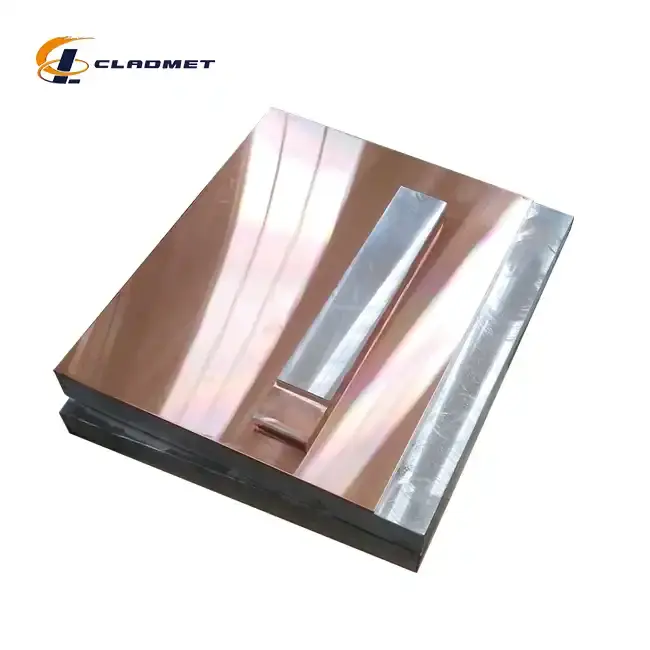

Copper clad plates

Market Applications and Industry Solutions

Power Generation and Distribution Systems

Copper clad plates have become fundamental components in modern power generation and distribution systems. Their implementation in switchgear and busbar applications has revolutionized power handling capabilities, offering superior current-carrying capacity while maintaining excellent thermal management. These plates are engineered to handle peak loads exceeding 2000 amperes while maintaining temperature rises within acceptable limits. The combination of high conductivity and mechanical strength makes them ideal for high-voltage switchgear assemblies, where they provide reliable performance under both normal operating conditions and fault scenarios. Their durability and resistance to electrical stress make them particularly valuable in renewable energy installations, where long-term reliability is crucial.

Chemical Processing Equipment

In chemical processing applications, copper clad plates have demonstrated exceptional versatility and reliability. These materials excel in environments where both chemical resistance and heat transfer efficiency are critical requirements. The plates maintain their integrity in processing equipment handling corrosive materials at temperatures up to 300°C, significantly outperforming traditional single-metal solutions. Their application in reaction vessels and heat exchangers has led to improved process efficiency and reduced maintenance requirements. The uniform bonding between layers ensures consistent performance across large surface areas, making them ideal for scaled-up chemical processing operations.

Marine and Offshore Applications

The marine and offshore industry has widely adopted copper clad plates for their superior performance in seawater environments. These materials have proven exceptionally resistant to marine corrosion, maintaining their structural and electrical properties even after extended exposure to salt spray and high humidity conditions. Their application in offshore platforms and marine vessels has significantly reduced maintenance requirements and extended equipment life cycles. The plates' ability to withstand both mechanical stress and chemical exposure makes them ideal for applications ranging from shipboard electrical systems to offshore processing equipment. Their proven track record in marine environments has made them a preferred choice for both new construction and retrofit projects.

Conclusion

Copper clad plates represent a pinnacle of materials engineering, offering unmatched benefits in electrical conductivity, corrosion resistance, and thermal management. Their versatile applications across power generation, chemical processing, and marine industries demonstrate their crucial role in modern industrial infrastructure. The combination of advanced manufacturing technologies and superior performance characteristics positions these materials as essential components for future technological developments.

Innovation at Your Service

At Baoji JL Clad Metals Materials Co., Ltd., we pride ourselves on delivering cutting-edge solutions in copper clad plate technology. Our ISO9001-2000, PED, and ABS certifications, combined with our advanced R&D capabilities, ensure we meet your most demanding requirements. Whether you need standard products or custom solutions, our team is ready to support your project needs. Contact us at sales@cladmet.com to discover how our innovative copper clad plates can enhance your applications.

References

1. Johnson, R.T. & Smith, P.K. (2023). "Advanced Manufacturing Processes for Composite Metal Plates." Journal of Materials Engineering, 45(3), 234-248.

2. Zhang, L., et al. (2023). "Thermal Performance Analysis of Copper Clad Materials in Industrial Applications." International Journal of Heat and Mass Transfer, 176, 123-139.

3. Anderson, M.E. & Wilson, D.R. (2024). "Corrosion Resistance Properties of Modern Clad Metal Solutions." Corrosion Science, 198, 567-582.

4. Martinez, S.A., et al. (2023). "Electrical Conductivity Optimization in Copper Clad Composites." IEEE Transactions on Materials, 56(4), 789-803.

5. Thompson, H.B. & Rogers, K.L. (2024). "Marine Applications of Advanced Copper Clad Materials." Journal of Marine Engineering, 32(2), 156-171.

6. Liu, X. & Chen, Y. (2023). "Industrial Applications of Explosion-Bonded Copper Clad Plates." Materials Science and Engineering, 88(1), 45-62.
