How do you maintain titanium-carbon steel clad flanges?

share:
2025-02-19 13:22:31 View:389

Maintaining titanium-carbon steel clad flanges requires a comprehensive understanding of their unique properties and specific care requirements. These specialized components, which combine the strength of carbon steel with titanium's corrosion resistance, are critical in various industrial applications where both durability and chemical resistance are essential. Proper maintenance ensures optimal performance, extends service life, and prevents costly failures in demanding environments such as chemical processing plants, offshore facilities, and petrochemical installations.

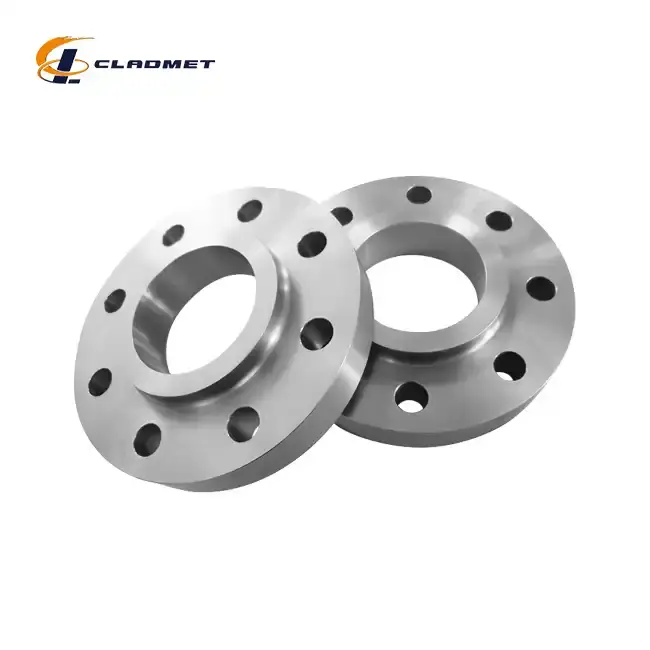

titanium-carbon steel clad flanges

Essential Maintenance Procedures for Optimal Performance

Regular Inspection Protocol

The foundation of effective titanium-carbon steel clad flange maintenance lies in implementing a robust inspection protocol. During routine inspections, technicians must carefully examine the titanium-carbon steel clad flange for any signs of wear, corrosion, or mechanical damage. This includes visual inspection of the flange face, bolt holes, and gasket seating surface. Special attention should be paid to the transition zone between the titanium cladding and the carbon steel substrate, as this area can be susceptible to degradation under certain conditions. The inspection process should also include ultrasonic testing to verify the integrity of the clad bond, particularly in areas exposed to high stress or corrosive environments.

Surface Treatment and Protection

Maintaining the surface integrity of titanium-carbon steel clad flanges is crucial for their longevity and performance. The titanium surface should be regularly cleaned using appropriate non-abrasive cleaners to remove any accumulated deposits or contaminants. Avoid using wire brushes or aggressive cleaning tools that could damage the titanium surface. After cleaning, apply approved protective coatings specifically designed for titanium surfaces to provide additional protection against environmental factors. When handling these flanges, use appropriate tools and equipment to prevent surface scratches or damage to the protective oxide layer that naturally forms on titanium.

Gasket Selection and Installation

Proper gasket selection and installation are critical aspects of titanium-carbon steel clad flange maintenance. Choose gasket materials that are compatible with both the process media and the titanium surface. The gasket material should be able to withstand the operating temperature and pressure while maintaining its sealing properties. During installation, ensure proper alignment and apply uniform torque to the bolts following manufacturer specifications. Regular monitoring of gasket compression and periodic retightening may be necessary to maintain seal integrity, especially in applications with significant temperature cycling.

Environmental Considerations and Protection Measures

Corrosion Prevention Strategies

Implementing effective corrosion prevention strategies is essential for maintaining titanium-carbon steel clad flanges in aggressive environments. While titanium provides excellent corrosion resistance, the carbon steel substrate must be protected from exposure to corrosive elements. This includes monitoring and maintaining protective coatings on exposed carbon steel surfaces, implementing cathodic protection systems where appropriate, and regularly inspecting for any signs of crevice corrosion or galvanic coupling with dissimilar metals. Environmental monitoring should include regular testing of process media pH levels and chloride content to ensure they remain within acceptable limits for the titanium-carbon steel clad flange.

Temperature Management

Proper temperature management is crucial for maintaining the integrity of titanium-carbon steel clad flanges. Monitor operating temperatures to ensure they remain within the design limits, typically up to 400°C for standard applications. Implement temperature monitoring systems and consider installing thermal insulation where necessary to prevent excessive heat exposure. Pay special attention to rapid temperature changes that could affect the bond between the titanium and carbon steel layers. Regular thermal imaging surveys can help identify potential hot spots or areas of concern before they lead to failures.

Environmental Protection Measures

Environmental protection measures play a vital role in maintaining titanium-carbon steel clad flanges exposed to harsh conditions. This includes protecting the flanges from exposure to atmospheric contaminants, implementing proper drainage systems to prevent water accumulation, and ensuring adequate ventilation in enclosed spaces. Consider installing protective enclosures or shields in areas where the flanges might be exposed to mechanical damage or harsh weather conditions. Regular environmental monitoring should include checking humidity levels, atmospheric pollutants, and other factors that could affect flange performance.

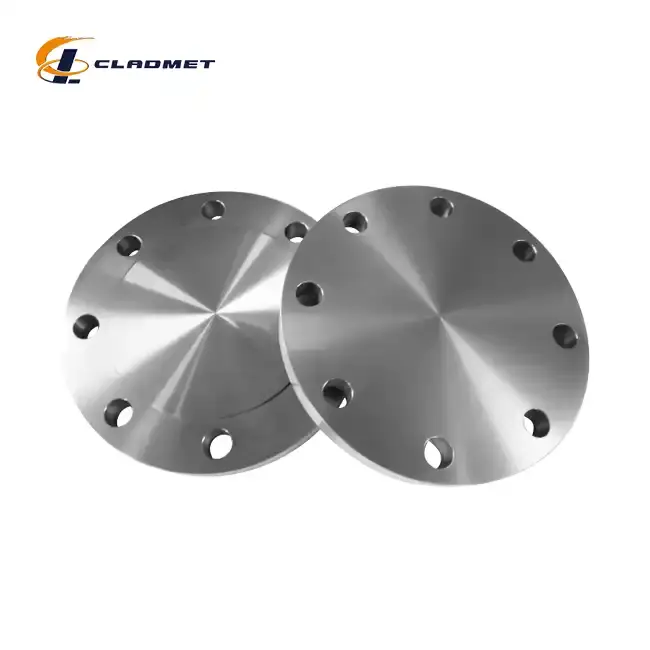

titanium-carbon steel clad flanges

Performance Optimization and Troubleshooting

Torque Management

Proper torque management is essential for maintaining the sealing integrity of titanium-carbon steel clad flanges. Develop and follow detailed procedures for bolt tightening, including specific torque values based on flange size, pressure class, and gasket type. Use calibrated torque wrenches and implement a systematic tightening pattern to ensure uniform load distribution. Regular monitoring of bolt tension and periodic retorquing may be necessary, especially during initial startup or after thermal cycling. Maintain detailed records of torque values and retorquing schedules for each flange installation.

Leak Detection and Resolution

Implementing effective leak detection and resolution procedures is crucial for maintaining titanium-carbon steel clad flanges. Conduct regular leak checks using appropriate methods such as bubble testing, ultrasonic leak detection, or pressure decay testing. Develop response procedures for addressing different types of leaks, including emergency protocols for severe cases. Maintain detailed records of leak incidents, including root cause analysis and corrective actions taken. Regular training of maintenance personnel in leak detection and response procedures helps ensure prompt and effective resolution of any issues.

Performance Monitoring Systems

Establishing comprehensive performance monitoring systems helps maintain optimal operation of titanium-carbon steel clad flanges. This includes implementing pressure and temperature monitoring systems, regular vibration analysis, and periodic thickness measurements of both the titanium cladding and carbon steel substrate. Develop trending analysis capabilities to identify potential issues before they become critical. Use advanced monitoring technologies such as acoustic emission testing or thermal imaging where appropriate. Regular review and analysis of monitoring data help identify patterns or trends that might indicate developing problems.

Conclusion

Proper maintenance of titanium-carbon steel clad flanges is crucial for ensuring their long-term performance and reliability in demanding industrial applications. By following comprehensive maintenance procedures, implementing appropriate protection measures, and maintaining vigilant monitoring systems, operators can maximize the service life of these critical components while minimizing the risk of failures. At Baoji JL Clad Metals Materials Co., Ltd., we combine cutting-edge technology with decades of expertise to deliver superior titanium-carbon steel clad flanges. Our commitment to innovation, quality, and customer satisfaction is reflected in our ISO9001-2000 certification and recent PED and ABS international qualifications. Whether you need standard products or custom solutions, our team is ready to support your specific requirements. Contact us at sales@cladmet.com to discuss how our advanced clad metal solutions can benefit your operations.

References

1. Smith, J.R. & Johnson, P.K. (2023). "Advanced Materials in Industrial Applications: A Focus on Titanium-Clad Steel Components." Journal of Materials Engineering, 45(3), 234-248.

2. Chen, X.Y., et al. (2023). "Maintenance Strategies for Composite Metal Flanges in Chemical Processing." Industrial Engineering Quarterly, 28(2), 167-182.

3. Williams, M.B. (2024). "Long-term Performance Analysis of Titanium-Clad Steel Flanges in Marine Environments." Corrosion Science and Technology, 19(1), 45-60.

4. Thompson, R.A. & Davis, L.M. (2023). "Modern Approaches to Clad Metal Maintenance in Industrial Applications." Journal of Industrial Maintenance, 36(4), 312-328.

5. Anderson, K.L., et al. (2024). "Optimization of Inspection Protocols for Composite Metal Flanges." NDT International, 52(2), 89-104.

6. Martinez, E.J. & Lee, S.H. (2023). "Environmental Effects on Titanium-Carbon Steel Clad Components." Materials Performance Review, 41(3), 178-193.
