Where are titanium-carbon steel clad heads commonly used?

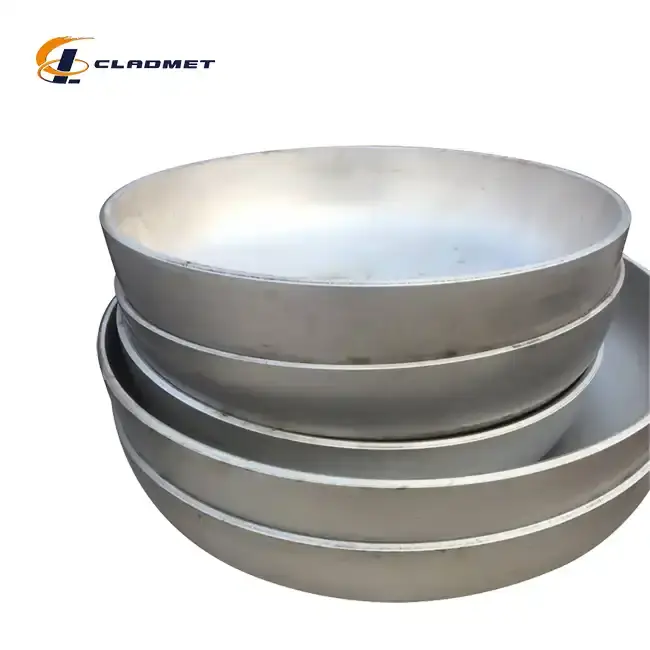

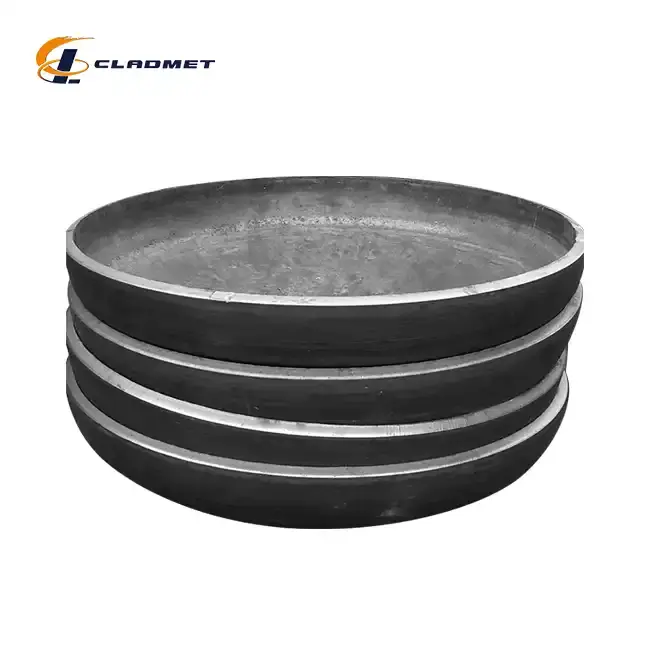

The application of titanium-carbon steel clad heads represents a significant advancement in materials engineering, particularly in industries requiring exceptional corrosion resistance combined with structural integrity. These specialized components, consisting of a carbon steel base layer bonded with a titanium cladding, have become indispensable in various industrial applications where aggressive chemical environments and high-pressure conditions coexist. The unique properties of titanium-carbon steel clad heads make them particularly valuable in chemical processing, offshore operations, and advanced manufacturing facilities where traditional materials would quickly deteriorate.

Applications in Chemical Processing Industries

Chemical Reactor Equipment

The chemical processing industry relies heavily on titanium-carbon steel clad heads for reactor vessels and processing equipment. These components excel in environments where aggressive chemicals and high temperatures are common. The titanium layer provides superior resistance to corrosive media, while the carbon steel base ensures structural integrity under high-pressure conditions. Modern manufacturing techniques, including explosive bonding, create an exceptionally strong metallurgical bond between the titanium (grades TA1, TA2, Gr1, or Gr2) and carbon steel base (Q235B, Q345B, or A516 Gr.70). This combination allows for safe operation in environments where temperatures and pressures fluctuate significantly, with total thickness ranges from 5mm to 200mm being customizable to specific application requirements.

Pharmaceutical Processing Equipment

In pharmaceutical manufacturing, titanium-carbon steel clad heads play a crucial role in maintaining product purity and equipment longevity. The titanium surface, with customizable finishes including polished or sandblasted options, prevents contamination and ensures compliance with strict industry standards. These clad heads, available in various configurations including elliptical, torispherical, and hemispherical shapes, are manufactured using advanced bonding technologies that achieve bonding strengths of ≥140 MPa. This exceptional strength ensures reliable performance in critical pharmaceutical processes where maintaining sterile conditions and chemical purity is paramount.

Specialty Chemical Production

For specialty chemical production facilities, titanium-carbon steel clad heads provide an optimal solution for handling diverse chemical compounds. The clad layer thickness, ranging from 1mm to 10mm, can be customized based on specific corrosion requirements, while the base layer thickness of 4mm to 190mm ensures structural stability. Hot Isostatic Pressing (HIP) technology is often employed in manufacturing these components, creating a diffusion bond that maintains high integrity even under extreme chemical exposure and temperature variations.

Marine and Offshore Applications

Desalination Equipment

In desalination plants, titanium-carbon steel clad heads are essential components in pressure vessels and heat exchangers. The titanium cladding, with its excellent resistance to seawater corrosion, protects the underlying carbon steel structure while maintaining optimal heat transfer properties. Manufacturing these components involves sophisticated roll bonding processes, ensuring uniform bonding across large surface areas. The resulting products offer superior performance in handling high-salinity environments while meeting stringent ASTM B898 and ASME SB-898 standards.

Offshore Processing Units

Offshore facilities utilize titanium-carbon steel clad heads in various processing equipment exposed to marine environments. These components, manufactured using explosive bonding techniques, demonstrate exceptional resistance to both internal process chemicals and external marine conditions. The shear strength of ≥105 MPa ensures reliable performance under the dynamic loads typical in offshore operations. The customizable diameter range of 300mm to 5000mm allows for adaptation to various equipment sizes and configurations.

Marine Chemical Transport Equipment

Maritime chemical transport systems benefit from titanium-carbon steel clad heads in storage and processing vessels. The combination of materials provides excellent resistance to both chemical cargo and marine environments. Advanced manufacturing processes, including controlled explosive bonding, create a metallurgical bond that maintains its integrity even under severe operating conditions. The versatility in head types and customizable surface finishes makes these components adaptable to various marine transport applications.

Power Generation Applications

Nuclear Power Plant Components

In nuclear power facilities, titanium-carbon steel clad heads are crucial for various critical components. The exceptional corrosion resistance and structural integrity make them ideal for reactor auxiliary systems and heat exchangers. Manufacturing these components involves precise control of bonding processes, ensuring compliance with nuclear industry standards. The ability to customize dimensions and specifications allows for optimal integration into various nuclear power plant systems.

Thermal Power Plant Equipment

Thermal power plants utilize titanium-carbon steel clad heads in areas where high temperatures and corrosive conditions coexist. These components, manufactured to meet GB/T 25198 standards, provide reliable service in steam generators and heat exchange systems. The combination of materials offers excellent heat resistance while maintaining structural integrity under thermal cycling conditions. Advanced bonding technologies ensure uniform material properties across the entire component surface.

Waste Heat Recovery Systems

In waste heat recovery applications, titanium-carbon steel clad heads provide superior performance in handling both high temperatures and corrosive exhaust gases. The customizable thickness ratios and surface finishes allow for optimization of heat transfer properties while maintaining corrosion resistance. Manufacturing processes focus on achieving consistent bond quality across varying geometries, ensuring reliable long-term performance in demanding waste heat recovery environments.

Conclusion

Titanium-carbon steel clad heads represent a crucial advancement in materials technology, offering an optimal balance of corrosion resistance, structural integrity, and cost-effectiveness across various industrial applications. Their versatility and reliable performance make them indispensable in modern industrial processes. At Baoji JL Clad Metals Materials Co., Ltd., we pride ourselves on delivering cutting-edge solutions in titanium-carbon steel clad head manufacturing. Our commitment to innovation, backed by ISO9001-2000 certification and recent PED and ABS international qualifications, ensures superior quality products tailored to your specific needs. Whether you require custom specifications or standard configurations, our team is ready to assist you in finding the perfect solution. Contact us at sales@cladmet.com to discuss how our expertise can benefit your operations.
