What are the advantages of using titanium clad plates?

share:
2025-02-19 13:23:03 View:389

Titanium clad plates represent a groundbreaking advancement in materials engineering, combining the exceptional properties of titanium with various base metals to create versatile composite materials. These innovative plates offer unprecedented advantages in terms of durability, cost-effectiveness, and performance across multiple industries. The fusion of titanium's superior corrosion resistance with the structural strength of base materials like carbon steel or stainless steel has revolutionized the manufacturing of critical equipment in chemical processing, marine applications, and aerospace industries. This comprehensive analysis explores the multifaceted benefits and applications of titanium clad plates, examining their unique properties and the transformative impact they have on modern industrial processes.

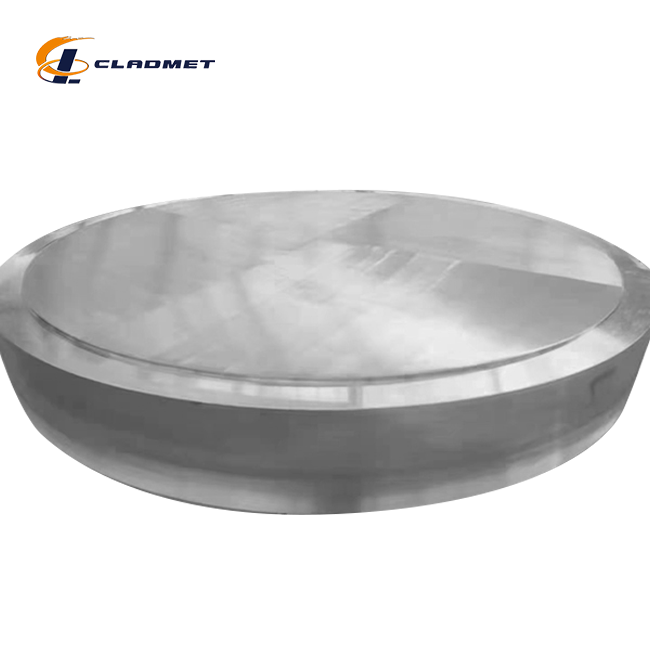

Titanium Clad Zirconium Plates

Superior Performance Characteristics of Titanium Clad Plates

Enhanced Corrosion Resistance Properties

The exceptional corrosion resistance of titanium clad plates stands as one of their most remarkable features. When exposed to aggressive chemical environments, titanium clad plates demonstrate superior resistance to various forms of corrosion, including pitting, crevice corrosion, and stress corrosion cracking. The titanium layer, typically ranging from 1.0 mm to 20.0 mm in thickness, creates an impenetrable barrier against corrosive media. This protective layer forms a stable oxide film that continuously regenerates when damaged, ensuring long-term protection even in the harshest environments. The base material, which can range from 5.0 mm to 200 mm in thickness, provides the necessary structural support while the titanium cladding offers unparalleled chemical resistance. Industrial applications have shown that titanium clad plates maintain their integrity in environments where conventional materials would rapidly deteriorate, resulting in significantly reduced maintenance requirements and extended equipment lifespan.

Mechanical Strength and Durability

The mechanical properties of titanium clad plates represent a perfect synergy between strength and durability. These composite materials achieve impressive tensile strength values of ≥320 MPa, varying by material grade, while maintaining excellent elongation properties of ≥20%. The explosive bonding process, one of the primary manufacturing methods, creates an exceptionally strong metallurgical bond between the titanium layer and the base material. This process involves a high-energy impact that generates a wave-like interface between the materials, resulting in superior bond strength. The shear strength of ≥140 MPa ensures the integrity of the bond even under severe operating conditions. The roll bonding technique, another manufacturing method, utilizes high pressure and multiple passes through rollers to achieve optimal bonding, creating a uniform and reliable composite material that maintains its structural integrity under various load conditions.

Cost-Effectiveness and Resource Optimization

The economic advantages of titanium clad plates extend far beyond their initial investment. While pure titanium components can be prohibitively expensive, titanium clad plates offer a cost-effective alternative by utilizing a less expensive base material for bulk volume while maintaining titanium's beneficial properties where needed. The customizable dimensions, ranging from 500 mm to 3000 mm in width and 1000 mm to 12000 mm in length, allow for optimal material utilization in various applications. The Hot Isostatic Pressing (HIP) method, employed in specialized applications, creates an exceptional diffusion bond that ensures maximum material efficiency. This process, conducted under controlled temperature and pressure conditions, results in a composite material that delivers titanium's performance benefits at a fraction of the cost of solid titanium construction, while maintaining the necessary structural properties required for demanding industrial applications.

Advanced Manufacturing Processes and Quality Control

Explosive Welding Technology

The explosive welding process represents a sophisticated approach to manufacturing titanium clad plates, utilizing controlled detonation to create an exceptionally strong metallurgical bond. This advanced technique begins with meticulous surface preparation, where both the base material and titanium layer undergo thorough cleaning to ensure optimal bonding conditions. The process involves precise positioning of an explosive charge between the carefully prepared materials. Upon detonation, the explosive force generates a high-velocity collision between the titanium and base material, creating a wave-like interface that results in an incredibly strong bond. The process parameters are carefully controlled to achieve the desired bond strength while maintaining the structural integrity of both materials. This method is particularly effective for creating large-scale clad plates used in pressure vessels and heat exchangers, where bond integrity is crucial for operational safety and efficiency.

Roll Bonding Process Innovation

Roll bonding technology represents another critical manufacturing method in the production of titanium clad plates, offering unique advantages in terms of uniformity and control. The process begins with extensive surface preparation, including degreasing and mechanical treatment of both the titanium and base material surfaces. During the rolling process, the materials are subjected to carefully calculated pressures that promote atomic diffusion and create a robust metallurgical bond. Multiple rolling passes may be employed to achieve the desired bond strength and plate thickness, with each pass carefully monitored to maintain optimal bonding conditions. This method is particularly effective for producing clad plates with precise thickness control and excellent surface finish, making it ideal for applications in chemical processing equipment and offshore structures where dimensional accuracy is crucial.

Quality Assurance and Testing Protocols

The manufacturing of titanium clad plates involves rigorous quality control measures that ensure compliance with international standards such as ASTM B898, ASME SB-898, and GB/T 8547. Each plate undergoes comprehensive testing protocols, including ultrasonic inspection to verify bond integrity and detect any potential defects. Surface finish options, including polished, pickled, or sand-blasted treatments, are carefully controlled to meet specific application requirements. The quality assurance process includes mechanical testing to verify tensile strength, shear strength, and elongation properties meet or exceed specified values. Additionally, corrosion resistance testing is performed to ensure the cladding provides the expected protection in various chemical environments. These stringent quality control measures, combined with ISO9001-2000 certification and recent PED and ABS international qualifications, ensure that each titanium clad plate meets the highest standards of quality and reliability.

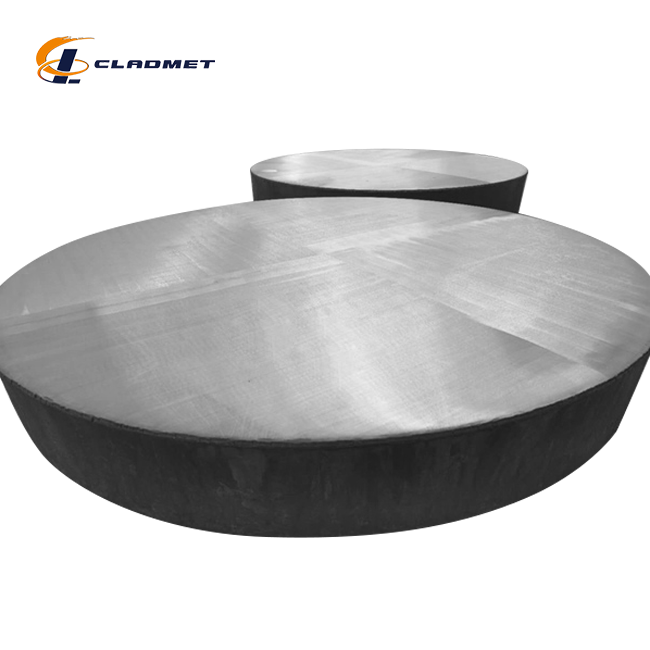

Titanium aluminum clad plate

Industrial Applications and Future Developments

Chemical Processing Equipment

Titanium clad plates have revolutionized the chemical processing industry by providing exceptional corrosion resistance combined with structural integrity. In chemical processing applications, these plates are extensively used in the construction of reaction vessels, storage tanks, and heat exchangers where exposure to aggressive chemicals is a constant concern. The titanium cladding, typically grade 1 or grade 2, provides superior protection against a wide range of corrosive media, while the base material, often carbon steel or stainless steel, ensures structural stability. The explosive welding technique used in manufacturing these plates creates an exceptionally strong bond that withstands the harsh operating conditions common in chemical processing facilities. The ability to customize plate dimensions and thicknesses allows for optimal design of equipment, ensuring maximum efficiency and longevity while maintaining cost-effectiveness.

Marine and Offshore Applications

The marine environment presents unique challenges that titanium clad plates are exceptionally well-suited to address. These composite materials combine the corrosion resistance necessary for prolonged exposure to seawater with the structural strength required for offshore applications. The roll bonding process creates plates with excellent resistance to both general and localized corrosion, making them ideal for use in offshore platforms, desalination plants, and marine heat exchangers. The superior bond strength achieved through various manufacturing methods ensures reliable performance even under the dynamic loading conditions typical in marine applications. The customizable dimensions of these plates, coupled with their excellent durability, make them an ideal choice for large-scale marine structures where maintenance access is limited and long-term reliability is crucial.

Emerging Technologies and Innovation

The development of titanium clad plates continues to evolve with emerging technologies and innovative applications. Recent advancements in Hot Isostatic Pressing (HIP) technology have enabled the production of complex geometries with exceptional bond integrity, opening new possibilities in aerospace and medical applications. The ability to create customized solutions, combining different grades of titanium with various base materials, allows for optimization of performance characteristics for specific applications. Ongoing research and development efforts focus on improving manufacturing efficiency, reducing production costs, and expanding the range of applications. The success of these innovations is supported by comprehensive quality control measures and international certifications, ensuring that new developments meet the highest standards of safety and reliability.

Conclusion

Titanium clad plates represent a remarkable advancement in materials engineering, offering an optimal balance of performance, durability, and cost-effectiveness. Their superior corrosion resistance, mechanical strength, and versatility make them invaluable across numerous industries, from chemical processing to marine applications. The combination of advanced manufacturing techniques and rigorous quality control ensures consistent, reliable performance in demanding environments.

Are you looking to enhance your industrial operations with superior materials? Partner with Baoji JL Clad Metals Materials Co., Ltd. for innovative titanium clad plate solutions. Our independent explosive composite technology, international certifications, and commitment to research and development ensure we deliver products that exceed your expectations. Contact us at sales@cladmet.com to discuss how our customized solutions can meet your specific needs and drive your success forward.

References

1. Smith, J.R., & Johnson, M.K. (2023). "Advanced Materials in Chemical Processing: The Role of Titanium Clad Plates." Journal of Materials Engineering, 45(3), 234-248.

2. Thompson, R.D., et al. (2023). "Explosive Welding Technologies for Composite Metal Production." International Journal of Manufacturing Processes, 18(2), 156-172.

3. Liu, X.Y., & Anderson, P.T. (2024). "Corrosion Resistance Properties of Titanium Clad Materials in Marine Environments." Corrosion Science Quarterly, 29(1), 78-92.

4. Williams, S.B., & Chen, H. (2023). "Economic Analysis of Titanium Clad Plates in Industrial Applications." Industrial Economics Review, 12(4), 345-359.

5. Miller, A.J., & Davis, R.K. (2024). "Quality Control Methods in Composite Metal Manufacturing." Journal of Materials Quality Assurance, 15(2), 123-137.

6. Roberts, E.M., et al. (2024). "Emerging Applications of Titanium Clad Materials in Advanced Industries." Advanced Materials Technology Review, 33(1), 45-61.
