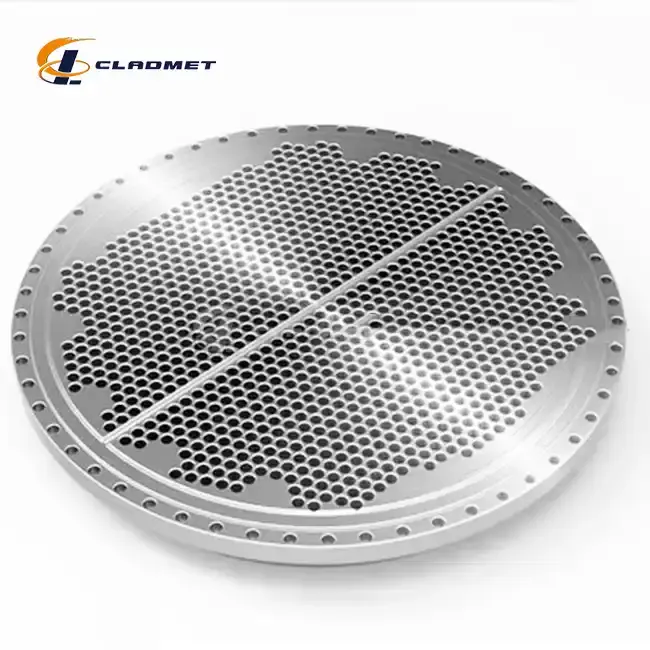

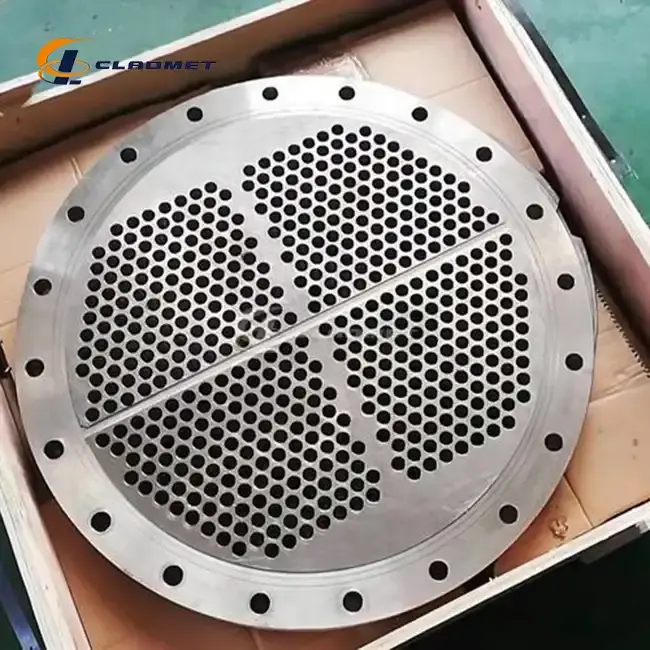

Where are Clad Plates for Tube Sheets Typically Used?

Clad plates for tube sheets represent a critical component in various industrial applications, serving as essential elements in heat exchangers, pressure vessels, and chemical processing equipment. These specialized plates consist of a base metal bonded with a corrosion-resistant cladding material, creating a robust composite that combines structural integrity with superior chemical resistance. The strategic application of clad plates for tube sheets spans multiple industries, from petrochemical processing to nuclear power generation, where they play a vital role in ensuring operational efficiency and safety.

Applications Across Industrial Sectors

Petrochemical Processing

The petrochemical industry heavily relies on clad plates for tube sheets in their processing equipment. These plates are instrumental in handling aggressive chemicals and corrosive substances while maintaining structural integrity. In refineries, clad plates for tube sheets are extensively used in heat exchangers where they must withstand high temperatures and pressures while resisting chemical degradation. The combination of a strong carbon steel base with corrosion-resistant cladding materials like titanium or stainless steel ensures optimal performance in these demanding environments. Regular exposure to sulfuric acid, hydrochloric acid, and various hydrocarbon compounds necessitates the use of these specialized materials to prevent equipment failure and maintain operational safety.

Marine Applications

In marine environments, clad plates for tube sheets face unique challenges due to constant exposure to seawater and varying temperature conditions. These plates are crucial components in desalination plants, offshore platforms, and marine heat exchangers. The cladding material, often titanium or high-grade stainless steel, provides excellent resistance to saltwater corrosion while the carbon steel base maintains structural strength. Marine heat exchangers utilizing these plates must handle the dual challenges of preventing galvanic corrosion and ensuring efficient heat transfer. The success of desalination operations largely depends on the reliability of these clad plates, which must maintain their integrity despite exposure to high-salinity environments and varying pressure conditions.

Chemical Processing Industry

The chemical processing industry presents some of the most demanding applications for clad plates for tube sheets. These components are essential in reactors, storage tanks, and processing vessels where they encounter various corrosive chemicals and extreme operating conditions. The selection of cladding materials is crucial, with options ranging from nickel alloys to specialized stainless steel grades depending on the specific chemical environment. Chemical manufacturers rely on these plates to maintain process integrity while handling acids, bases, and other reactive compounds. The ability to customize the cladding thickness and material composition allows for optimal performance in different chemical processing applications.

Manufacturing Technologies and Quality Standards

Explosive Welding Process

The explosive welding technique represents a sophisticated approach to manufacturing clad plates for tube sheets. This process involves precisely controlling explosive forces to create a metallurgical bond between the base metal and cladding material. The detonation generates a high-velocity collision between the materials, resulting in a bond strength that often exceeds the strength of either individual metal. The process parameters, including explosive charge distribution and standoff distance, are carefully calculated to ensure optimal bonding while maintaining material properties. This method is particularly effective for joining dissimilar metals that may be difficult to bond through conventional welding techniques, making it ideal for creating high-performance clad plates used in critical applications.

Roll Bonding Technology

Roll bonding technology offers a different approach to manufacturing clad plates for tube sheets, utilizing mechanical pressure to create strong metallurgical bonds. This process involves careful surface preparation and controlled deformation of both the base metal and cladding material. The materials undergo multiple passes through precision rollers, with each pass contributing to the development of the bond interface. Temperature control and surface cleanliness are critical factors in achieving consistent bond quality. This method is particularly suitable for producing large-format clad plates with uniform properties, making it a preferred choice for applications requiring extensive surface areas.

Quality Control Standards

The manufacturing of clad plates for tube sheets adheres to stringent quality control standards across all production stages. These standards encompass material selection, process control, and final product testing according to international specifications like ASTM, ASME, and JIS. Non-destructive testing methods, including ultrasonic inspection and radiographic testing, ensure bond integrity and detect any potential defects. The quality assurance process includes verification of mechanical properties, chemical composition analysis, and corrosion resistance testing. Manufacturers must maintain detailed documentation of all production parameters and test results to ensure traceability and compliance with industry requirements.

Performance Characteristics and Design Considerations

Material Selection Criteria

The selection of materials for clad plates for tube sheets requires careful consideration of multiple factors including operating conditions, chemical exposure, and mechanical requirements. Base materials typically include carbon steel or low-alloy steel, chosen for their structural strength and cost-effectiveness. The cladding material selection depends on the specific application environment, with options ranging from austenic stainless steels to exotic alloys like titanium or tantalum. Considerations must include not only chemical compatibility but also thermal expansion coefficients, mechanical properties, and cost factors. The thickness ratio between the base metal and cladding layer is optimized to achieve the desired performance while maintaining economic viability.

Mechanical Properties

The mechanical properties of clad plates for tube sheets play a crucial role in their performance and reliability. These properties include tensile strength, yield strength, elongation, and impact resistance, which must meet specific requirements for different applications. The bond interface between the base metal and cladding material must maintain its integrity under various loading conditions, including thermal cycling and mechanical stress. Engineers must consider factors such as differential thermal expansion, residual stress distribution, and fatigue resistance when designing systems utilizing these plates. The composite nature of clad plates requires special attention to stress concentration areas and potential failure modes.

Corrosion Resistance

The corrosion resistance of clad plates for tube sheets represents one of their most critical performance characteristics. The cladding material provides a protective barrier against corrosive media while the base metal supplies structural support. Different cladding materials offer varying levels of resistance to specific corrosive environments, from general atmospheric corrosion to highly aggressive chemical solutions. The selection of appropriate cladding thickness and material grade depends on factors such as chemical composition of the process fluid, temperature, pressure, and expected service life. Regular monitoring and maintenance programs help ensure the continued effectiveness of the corrosion protection system throughout the equipment's operational life.

Conclusion

Clad plates for tube sheets play an indispensable role in modern industrial applications, offering a unique combination of mechanical strength, corrosion resistance, and cost-effectiveness. Their versatility and reliability make them essential components in critical processes across multiple industries, from petrochemical processing to marine applications. At Baoji JL Clad Metals Materials Co., Ltd., we pride ourselves on delivering innovative solutions that meet the evolving needs of our global clientele. Our commitment to excellence is reflected in our ISO9001-2000 certification and recent PED and ABS international qualifications. Whether you need standard products or custom solutions, our team of experts is ready to assist you in finding the perfect clad plate solution for your application. Contact us at sales@cladmet.com to discuss how we can support your project requirements.
