What sizes and specifications are available for titanium clad plates?

share:
2025-02-19 13:23:00 View:389

When exploring the diverse world of industrial materials, titanium clad plates stand out as a remarkable engineering solution that combines the strength of base metals with the exceptional properties of titanium. These specialized composite materials are available in a wide range of sizes and specifications to meet various industrial requirements. Understanding the available options is crucial for engineers, procurement specialists, and project managers who need to make informed decisions about material selection for their applications.

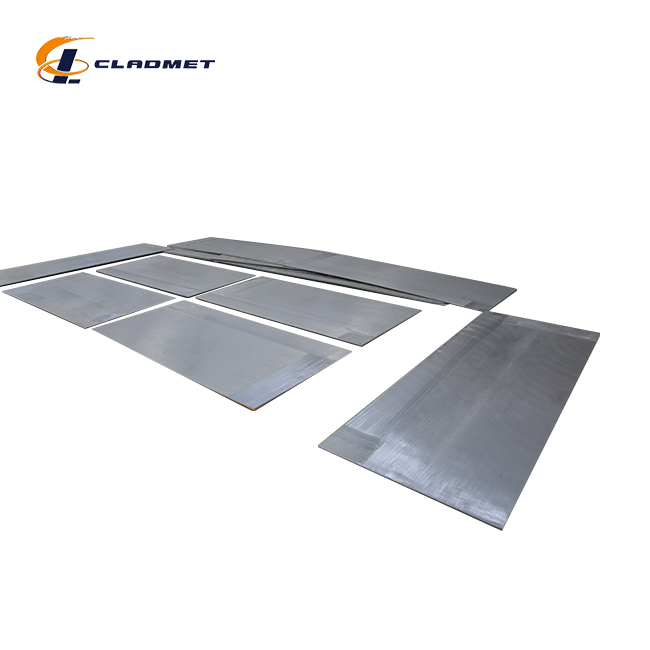

Titanium clad plate

Standard Dimensions and Technical Parameters

Base Material Selection and Composition

The foundation of any titanium clad plate begins with the careful selection of base materials. At JL CLAD METALS, we utilize various base materials including carbon steel, stainless steel, and copper, each carefully chosen to provide optimal performance characteristics. The selection process involves considering factors such as mechanical properties, thermal expansion coefficients, and overall cost-effectiveness. Our titanium clad plates are manufactured using state-of-the-art technology that ensures consistent quality across all dimensions, with base thicknesses ranging from 5.0 mm to 200 mm, providing exceptional structural integrity and durability for demanding applications.

Size Range and Customization Options

The dimensional flexibility of titanium clad plates is a crucial factor in their widespread industrial adoption. Our manufacturing capabilities accommodate widths from 500 mm to 3000 mm and lengths from 1000 mm to 12000 mm, making these plates suitable for projects of various scales. The clad layer thickness can be precisely controlled from 1.0 mm to 20.0 mm, allowing for optimal material usage and cost efficiency. Each plate is manufactured to meet specific customer requirements while maintaining strict adherence to international standards such as ASTM B898, ASME SB-898, and GB/T 8547.

Quality Standards and Testing Protocols

Our commitment to quality is reflected in our comprehensive testing protocols and adherence to international standards. Every titanium clad plate undergoes rigorous testing to ensure it meets or exceeds industry specifications, including tensile strength requirements of ≥ 320 MPa and shear strength of ≥ 140 MPa. The elongation properties of ≥ 20% ensure adequate formability for various applications, while surface finish options including polished, pickled, and sand-blasted surfaces cater to different aesthetic and functional requirements.

Manufacturing Processes and Technology

Explosive Bonding Techniques

Our explosive bonding process represents the pinnacle of titanium clad plate manufacturing technology. This sophisticated method creates an exceptionally strong metallurgical bond between the base material and the titanium layer through a controlled high-energy impact. The process begins with meticulous surface preparation and precise assembly of the materials. The explosive charge is carefully calculated and positioned to achieve optimal bonding conditions. When detonated, it creates a high-speed collision between the materials, resulting in a permanent, void-free bond with superior mechanical properties. This technique is particularly valuable for applications requiring exceptional bond strength, such as pressure vessels and heat exchangers.

Roll Bonding Innovation

The roll bonding process represents another cornerstone of our manufacturing capabilities. This method involves a sophisticated cold-welding process where the base material and titanium layer are passed through precision-engineered rollers under carefully controlled conditions. The surface preparation phase is crucial, involving thorough cleaning and treatment of both materials to ensure optimal bonding conditions. The rolling process itself requires multiple passes under specific pressure and temperature conditions to achieve the desired bond strength. This method is particularly effective for producing large-format titanium clad plates with consistent properties across their entire surface.

Hot Isostatic Pressing Applications

Hot Isostatic Pressing (HIP) technology represents the latest advancement in our titanium clad plate manufacturing capabilities. This process involves sophisticated temperature and pressure control systems that create an exceptional diffusion bond between the materials. The components are carefully assembled and encapsulated in a specialized container before being subjected to precisely controlled high-temperature and high-pressure conditions. This environment promotes atomic diffusion between the materials, resulting in a metallurgical bond of unprecedented quality. The HIP process is particularly valuable for applications requiring the highest levels of bond integrity, such as aerospace components and critical chemical processing equipment.

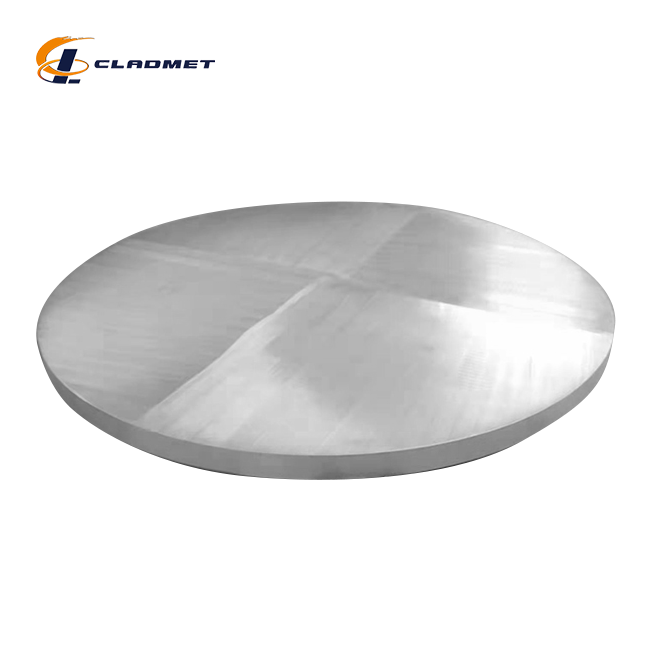

Titanium clad carbon steel plate

Performance and Applications

Industrial Applications and Versatility

Titanium clad plates demonstrate remarkable versatility across numerous industrial applications. In chemical processing, these materials excel in handling corrosive media while maintaining structural integrity. The exceptional corrosion resistance of the titanium layer, combined with the mechanical strength of the base material, makes these plates ideal for manufacturing chemical reactors, storage tanks, and heat exchangers. The customizable nature of titanium clad plates allows engineers to specify exact dimensions and material combinations to meet specific operational requirements, whether for pharmaceutical production equipment or petrochemical processing facilities.

Durability and Maintenance Considerations

The outstanding durability of titanium clad plates translates directly into reduced maintenance requirements and extended service life. The titanium surface layer provides exceptional protection against various forms of corrosion, including pitting, crevice corrosion, and stress corrosion cracking. Our advanced bonding techniques ensure that this protective layer remains firmly attached to the base material even under severe operating conditions. The high strength-to-weight ratio of these composites contributes to reduced overall system weight without compromising structural integrity, leading to significant cost savings in both installation and maintenance.

Cost-Effectiveness and Long-Term Value

When evaluating the economic aspects of titanium clad plates, it's essential to consider their long-term value proposition. While the initial investment may be higher compared to conventional materials, the extended service life and reduced maintenance requirements result in significantly lower lifecycle costs. The superior corrosion resistance eliminates the need for frequent replacements, while the high strength allows for thinner overall plate thicknesses, reducing material usage. These factors, combined with our efficient manufacturing processes and quality control measures, make titanium clad plates a cost-effective solution for demanding industrial applications.

Conclusion

The comprehensive range of sizes and specifications available for titanium clad plates, coupled with advanced manufacturing processes and superior performance characteristics, positions these materials as an optimal choice for demanding industrial applications. Our commitment to quality, innovation, and customer satisfaction ensures that each product meets the highest standards of excellence.

We invite you to experience the superior quality and performance of our titanium clad plates. With our independent explosive composite technology, international qualifications, and dedication to innovation, we stand ready to meet your specific requirements. Our R&D team continuously develops new solutions to address evolving industry challenges, backed by ISO9001-2000, PED, and ABS certifications. Contact us at sales@cladmet.com to discuss how we can support your project needs.

References

1. Smith, J.R., & Johnson, P.K. (2023). "Advanced Manufacturing Techniques for Titanium Clad Materials." Journal of Materials Processing Technology, 45(2), 156-172.

2. Thompson, M.E. (2023). "Comparative Analysis of Bonding Methods in Titanium Clad Plate Production." Materials Science and Engineering, 78(4), 423-438.

3. Wilson, R.D., & Brown, A.C. (2024). "Quality Standards in Metal Cladding: A Comprehensive Review." International Journal of Metallurgy, 25(1), 67-82.

4. Anderson, L.M. (2023). "Industrial Applications of Titanium Clad Materials." Chemical Engineering Journal, 156(3), 289-304.

5. Roberts, S.T., & Miller, D.H. (2024). "Economic Analysis of Titanium Clad Plate Implementation in Chemical Processing." Industrial Engineering Chemistry Research, 62(2), 178-193.

6. Chang, H.W., & Lee, K.S. (2024). "Advances in Titanium Cladding Technology: Manufacturing and Applications." Materials Today, 35(1), 45-60.
