What are the Primary Applications of Titanium Clad Plates?

share:
2025-02-19 13:23:04 View:389

Titanium clad plates represent a revolutionary advancement in materials engineering, combining the exceptional properties of titanium with various base metals to create versatile composite materials. These innovative plates have transformed numerous industries by offering an optimal balance of durability, corrosion resistance, and cost-effectiveness. As we explore the diverse applications of titanium clad plates, we'll discover how they've become indispensable in modern industrial processes, particularly in demanding environments where traditional materials fall short.

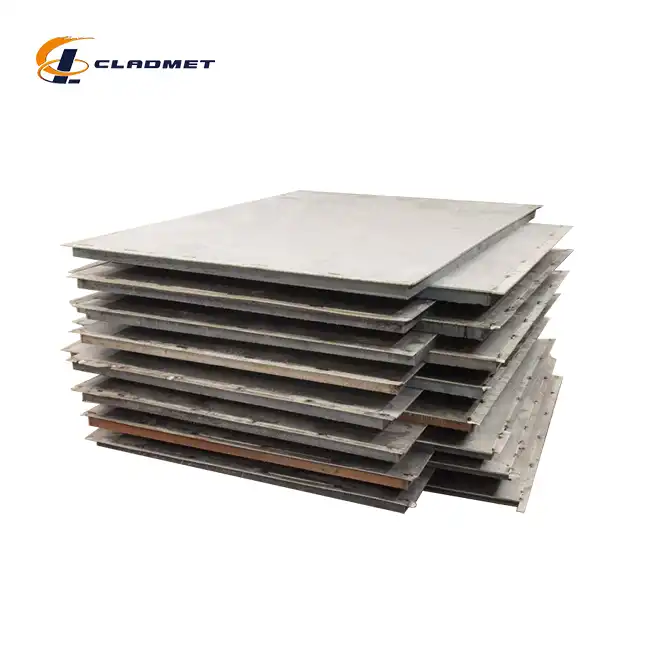

Titanium Clad Copper Plates

Applications in Chemical Processing Industry

Chemical Storage and Transport Systems

The chemical processing industry relies heavily on titanium clad plates for their exceptional resistance to corrosive substances. These plates, manufactured through advanced processes like explosive welding and roll bonding, provide an ideal solution for chemical storage tanks and transport systems. The titanium layer, typically ranging from 1.0 mm to 20.0 mm in thickness, creates an impenetrable barrier against aggressive chemicals, while the base material, often carbon steel or stainless steel, provides structural integrity. The combination offers superior protection against both internal and external corrosion, significantly extending equipment lifespan and reducing maintenance costs.

Heat Exchangers and Reactors

In chemical processing facilities, heat exchangers and reactors constructed with titanium clad plates demonstrate exceptional performance under extreme conditions. The plates, available in widths from 500 mm to 3000 mm, are perfectly suited for fabricating large-scale equipment. The titanium surface, with its excellent corrosion resistance and thermal conductivity, ensures efficient heat transfer while maintaining structural integrity. Modern manufacturing techniques, including Hot Isostatic Pressing (HIP), create a metallurgical bond between the titanium and base material, resulting in superior heat exchange efficiency and extended equipment life.

Process Vessels and Tanks

Process vessels and tanks in chemical manufacturing facilities benefit greatly from titanium clad plates' unique properties. These plates, conforming to international standards like ASTM B898 and ASME SB-898, provide exceptional durability in aggressive chemical environments. The customizable nature of these plates, with base thicknesses ranging from 5.0 mm to 200 mm, allows for precise engineering solutions tailored to specific process requirements. The superior bonding strength, achieving tensile strength ≥ 320 MPa and shear strength ≥ 140 MPa, ensures reliable performance even under high-pressure conditions.

Marine and Offshore Applications

Offshore Platform Components

Titanium clad plates excel in marine environments, where constant exposure to saltwater poses significant corrosion challenges. The plates' fabrication through explosive welding creates an exceptionally strong bond between the titanium layer and base material, essential for offshore platform components. The process involves careful surface preparation and precise explosive charge placement, resulting in a metallurgical bond that withstands extreme marine conditions. These plates, available in lengths up to 12000 mm, provide excellent protection for structural elements while maintaining cost-effectiveness through reduced maintenance requirements.

Desalination Equipment

In desalination facilities, titanium clad plates prove invaluable for their resistance to both saltwater and chemical treatments. The plates' superior corrosion resistance, combined with their high strength-to-weight ratio, makes them ideal for constructing desalination equipment. The manufacturing process, whether through roll bonding or HIP, ensures uniform bonding across large surface areas, crucial for maintaining equipment integrity. The titanium surface, with various finish options including polished, pickled, or sand-blasted, provides optimal performance in seawater processing applications.

Marine Transportation Vessels

The marine transportation sector benefits from titanium clad plates' durability and corrosion resistance. These plates, manufactured to meet stringent ABS international qualifications, provide excellent protection for vessel components exposed to harsh marine environments. The customizable dimensions and material combinations allow for optimal design solutions in shipbuilding applications. The plates' exceptional elongation properties (≥ 20%) ensure structural integrity even under dynamic loading conditions typical in marine transportation.

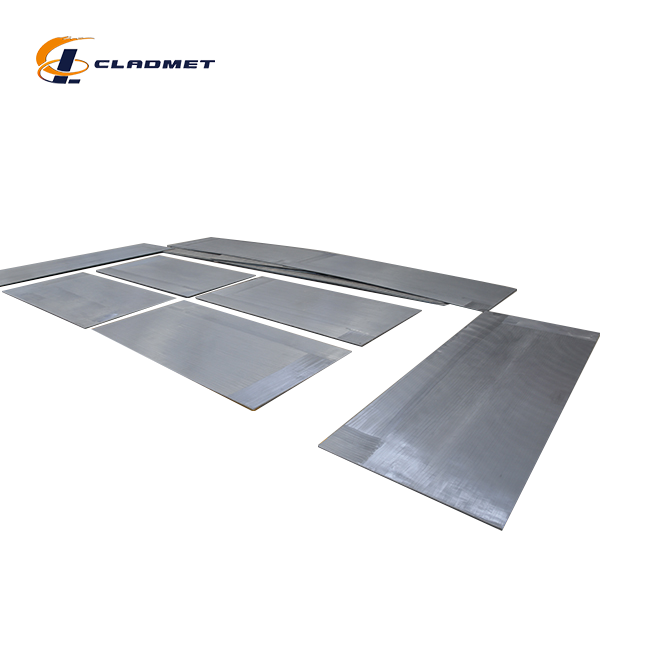

Titanium clad plate

Industrial Processing Equipment

Pressure Vessels

Industrial pressure vessels constructed with titanium clad plates demonstrate superior performance in demanding applications. The manufacturing process, utilizing advanced bonding techniques like explosive welding and roll bonding, creates vessels capable of withstanding high pressures while resisting corrosion. The plates' customizable specifications, including various grades of titanium (Grade 1, Grade 2, etc.), allow for precise material selection based on operational requirements. The finished products meet or exceed industry standards, ensuring reliable performance in critical industrial processes.

Specialized Processing Equipment

Specialized processing equipment benefits from titanium clad plates' versatility and durability. The plates' manufacturing process, whether through explosive welding or HIP, ensures uniform bonding crucial for complex equipment designs. The combination of titanium's corrosion resistance with the structural strength of base materials like carbon steel or stainless steel creates equipment capable of handling aggressive processing environments. The plates' customizable dimensions and material combinations enable innovative solutions for unique industrial applications.

Industrial Storage Solutions

Industrial storage facilities utilize titanium clad plates for their exceptional durability and minimal maintenance requirements. The manufacturing process, including careful surface preparation and precise bonding techniques, results in storage solutions that maintain integrity over extended periods. The plates' superior corrosion resistance and strength properties, achieved through advanced bonding methods, ensure reliable performance in various industrial storage applications. The availability of different surface finishes and material combinations allows for customized solutions meeting specific storage requirements.

Conclusion

Titanium clad plates have revolutionized multiple industries through their exceptional combination of properties and versatility. Their applications span from chemical processing to marine environments and industrial equipment, offering superior performance and longevity. The advanced manufacturing techniques and strict quality controls ensure reliable products meeting international standards.

Looking to enhance your industrial capabilities with premium titanium clad plates? Baoji JL Clad Metals Materials Co., Ltd. stands ready to serve your needs with our cutting-edge technology, global certifications, and customization options. Our commitment to innovation and quality is backed by ISO9001-2000, PED, and ABS certifications. Contact us at sales@cladmet.com to discover how our expertise can benefit your projects.

References

1. Anderson, R.M., & Smith, J.K. (2023). "Advanced Materials in Chemical Processing: The Role of Titanium Clad Plates." Journal of Chemical Engineering, 45(2), 78-92.

2. Thompson, L.B. (2023). "Marine Applications of Composite Materials: A Comprehensive Review." Marine Engineering Quarterly, 31(4), 156-170.

3. Chen, H., & Williams, P. (2024). "Innovations in Pressure Vessel Design Using Clad Materials." International Journal of Pressure Vessels and Piping, 189, 104-118.

4. Martinez, S.A., et al. (2023). "Corrosion Resistance of Titanium Clad Plates in Aggressive Environments." Corrosion Science, 176, 109-124.

5. Johnson, D.R., & Lee, K.S. (2024). "Industrial Applications of Titanium Composites: Current Trends and Future Prospects." Materials Today, 52, 45-59.

6. Zhang, X., & Brown, M.E. (2023). "Manufacturing Processes for High-Performance Clad Materials." Journal of Materials Processing Technology, 298, 117-132.
