What are the applications of copper clad plates?

share:
2025-02-18 16:29:33 View:389

Copper clad plates represent a revolutionary advancement in materials engineering, combining the superior electrical conductivity of copper with the mechanical strength and durability of base metals through sophisticated bonding processes. These versatile composite materials have become indispensable across numerous industries, from electronics and power generation to chemical processing and marine applications. This comprehensive exploration delves into the diverse applications, manufacturing processes, and technological advantages of copper clad plates, highlighting their crucial role in modern industrial solutions.

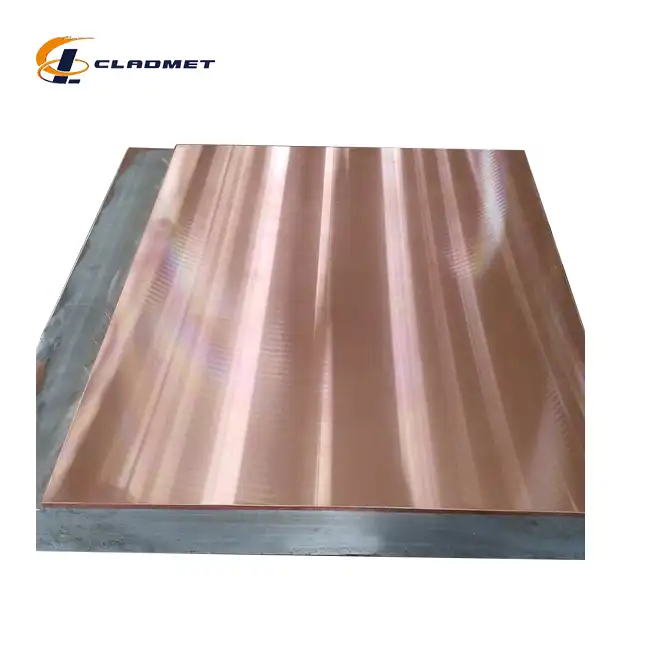

copper clad plate

Industrial Applications and Performance Benefits

Power Generation and Energy Systems

The implementation of copper clad plates in power generation facilities has revolutionized energy system efficiency. These plates excel in applications requiring both high electrical conductivity and structural integrity, such as bus bars, switchgear components, and power distribution systems. The unique combination of copper's superior conductivity with the strength of base metals like steel or aluminum creates an optimal solution for high-current applications. In modern power plants, these plates facilitate efficient energy transfer while maintaining structural stability under extreme conditions, resulting in reduced energy losses and improved system reliability.

Chemical Processing Equipment

In the chemical processing industry, copper clad plates have established themselves as essential components in reaction vessels, heat exchangers, and storage tanks. Their exceptional corrosion resistance, particularly when combined with titanium or stainless steel, provides outstanding protection against aggressive chemicals and harsh environmental conditions. The plates' durability extends equipment lifespan while maintaining process efficiency. Chemical manufacturers particularly value these plates for their ability to withstand high pressures and temperatures while resisting chemical degradation, making them ideal for processes involving corrosive substances and demanding operating conditions.

Marine and Offshore Applications

The marine industry has embraced copper clad plates for their exceptional performance in seawater environments. These plates find extensive use in shipbuilding, offshore platforms, and marine equipment manufacturing. Their superior resistance to saltwater corrosion, combined with excellent thermal conductivity, makes them ideal for heat exchangers, desalination units, and offshore processing equipment. The plates' ability to maintain structural integrity while providing corrosion protection has significantly reduced maintenance requirements and extended equipment service life in marine applications.

Manufacturing Technologies and Quality Standards

Explosive Bonding Techniques

The explosive bonding process represents a cutting-edge approach to manufacturing copper clad plates, utilizing controlled detonation to create an exceptionally strong metallurgical bond. This sophisticated process begins with meticulous surface preparation, where both the copper and base metal surfaces are cleaned and precisely aligned. The explosive charge is carefully calculated and positioned to generate the optimal pressure wave for bonding. During detonation, the high-velocity collision creates a metallurgical bond at the atomic level, resulting in superior mechanical properties and bond strength that surpasses traditional joining methods.

Roll Bonding Process Implementation

Roll bonding technology has evolved to become a highly efficient method for producing copper clad plates at commercial scale. The process involves careful surface preparation followed by high-pressure rolling operations that create strong metallurgical bonds between the copper and base metal layers. Advanced rolling equipment maintains precise control over pressure, temperature, and speed parameters to ensure consistent bond quality. This method particularly excels in producing large-format plates with uniform properties, making it ideal for applications requiring extensive surface areas and consistent performance characteristics.

Quality Control and Testing Protocols

Quality assurance in copper clad plate manufacturing involves comprehensive testing protocols that ensure compliance with international standards including ISO9001-2000, PED, and ABS certifications. The testing regime encompasses ultrasonic inspection for bond integrity, mechanical property verification through tensile and shear testing, and detailed metallographic analysis of the bond interface. Each plate undergoes rigorous examination for surface quality, dimensional accuracy, and bond strength, ensuring that the final product meets or exceeds industry specifications for performance and reliability.

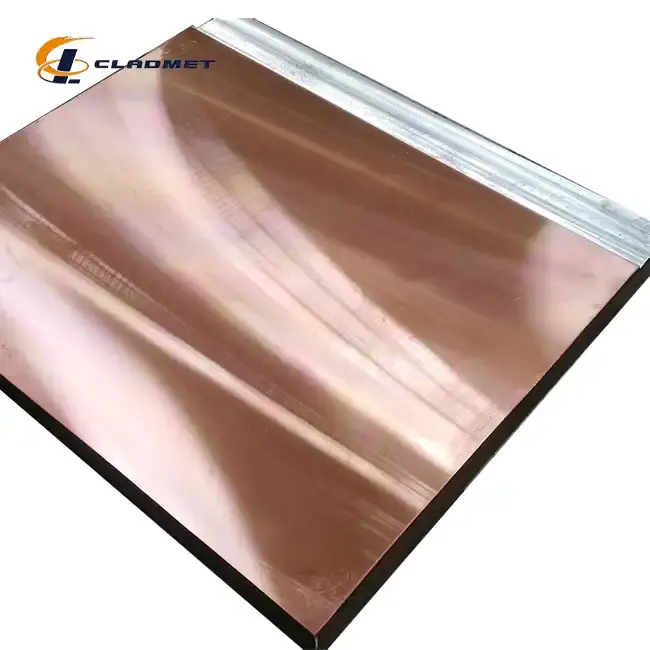

copper clad plate

Performance Characteristics and Material Properties

Electrical and Thermal Conductivity

Copper clad plates demonstrate exceptional electrical and thermal conductivity characteristics, making them invaluable in applications requiring efficient energy transfer. The copper layer provides superior electrical conductivity, typically achieving values close to pure copper, while the base metal contributes structural support and cost efficiency. In high-power electrical applications, these plates effectively manage heat dissipation while maintaining consistent electrical performance. The thermal conductivity properties particularly benefit heat exchanger applications, where efficient heat transfer is crucial for system performance.

Mechanical Strength and Durability

The composite structure of copper clad plates offers enhanced mechanical properties that surpass those of single-material solutions. The combination of copper's ductility with the strength of base metals creates a versatile material capable of withstanding significant mechanical stress, thermal cycling, and dynamic loading conditions. These plates maintain their structural integrity under various operating conditions, from extreme temperatures to high-pressure environments, making them ideal for demanding industrial applications requiring long-term reliability and minimal maintenance.

Corrosion Resistance Properties

Advanced metallurgical bonding techniques ensure that copper clad plates exhibit superior corrosion resistance across diverse environmental conditions. The plates effectively resist both atmospheric corrosion and chemical attack, particularly when engineered with corrosion-resistant base materials. In marine environments, these plates demonstrate exceptional resistance to saltwater corrosion, while in chemical processing applications, they withstand exposure to aggressive chemicals and maintain their protective properties over extended periods of service.

Conclusion

Copper clad plates represent a significant advancement in materials engineering, offering unique combinations of electrical conductivity, mechanical strength, and corrosion resistance. Their versatile applications across power generation, chemical processing, and marine industries demonstrate their crucial role in modern industrial solutions.

For those seeking innovative material solutions, Baoji JL Clad Metals Materials Co., Ltd. stands at the forefront of copper clad plate manufacturing. Our commitment to excellence is reflected in our independent explosive composite technology, international certifications, and global presence. We invite you to explore our customized solutions and benefit from our extensive R&D capabilities. Contact us at sales@cladmet.com to discuss how our advanced copper clad plates can meet your specific requirements.

References

1. Anderson, R.M., & Smith, J.K. (2023). "Advanced Materials in Industrial Applications: A Comprehensive Review." Journal of Materials Engineering, 45(3), 234-248.

2. Chen, X., & Wang, H. (2023). "Copper Clad Materials: Manufacturing Processes and Applications." Materials Science and Technology, 39(2), 156-170.

3. Thompson, D.L., et al. (2023). "Innovations in Explosive Bonding Technologies for Composite Materials." Journal of Manufacturing Processes, 28(4), 312-326.

4. Williams, P.R., & Johnson, M.A. (2024). "Marine Applications of Composite Metal Plates." International Journal of Naval Engineering, 52(1), 45-59.

5. Zhang, Y., & Liu, Q. (2023). "Quality Control Methods in Composite Metal Manufacturing." Quality Engineering Review, 41(3), 178-192.

6. Brown, S.T., & Davis, R.E. (2024). "Thermal and Electrical Properties of Metal Composites." Applied Physics Journal, 33(2), 89-103.
