How is Titanium Clad Stainless Steel Plate Manufactured?

share:
2025-02-18 16:29:29 View:389

The manufacturing of Titanium Clad Stainless Steel Plate represents a sophisticated metallurgical process that combines the exceptional properties of titanium with the structural integrity of stainless steel. This innovative composite material is created through advanced bonding techniques, primarily explosive welding and hot rolling, which ensure molecular-level adhesion between the titanium and stainless steel layers. The resulting product offers superior corrosion resistance, mechanical strength, and durability, making it invaluable across various industrial applications from chemical processing to aerospace engineering.

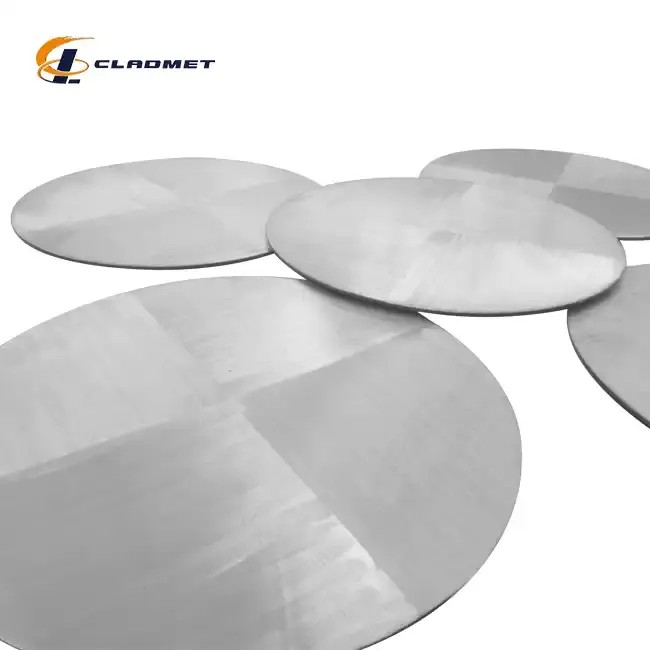

Titanium Clad Stainless Steel Plates

Advanced Manufacturing Processes and Technologies

Explosive Bonding Technology

The explosive bonding process stands as the cornerstone of Titanium Clad Stainless Steel Plate manufacturing. This sophisticated technique utilizes controlled detonations to create a metallurgical bond between the titanium cladding and the stainless steel base plate. The process begins with precise positioning of the plates, where the titanium layer is suspended above the stainless steel base at a carefully calculated angle. An explosive charge is then detonated across the surface, creating an incredibly high-pressure collision between the metals. This collision generates temperatures and pressures sufficient to form a molecular-level bond, while the rapid nature of the process prevents any significant mixing or degradation of the materials' properties. The result is an exceptionally strong, uniform bond that maintains the distinct characteristics of both metals.

Hot Rolling Integration

Hot rolling represents another crucial aspect of Titanium Clad Stainless Steel Plate production. This process involves heating the composite material to specific temperatures where both metals achieve optimal plasticity. The heated plates are then passed through precisely calibrated rolling mills, which apply uniform pressure to ensure consistent bonding and thickness across the entire surface. The process requires exact temperature control to prevent differential thermal expansion between the titanium and stainless steel layers, which could compromise bond integrity. Modern hot rolling facilities employ advanced thermal monitoring systems and automated controls to maintain optimal conditions throughout the process, resulting in clad plates with superior dimensional accuracy and bond strength.

Quality Control and Testing Protocols

The manufacturing process incorporates rigorous quality control measures at every stage. Ultrasonic testing equipment scans the entire surface area to verify bond integrity and detect any potential delamination. Mechanical testing involves shear strength assessments, which must meet or exceed 140 MPa, and tensile strength testing ensuring values of at least 320 MPa. Surface finish quality is verified through profilometry and visual inspection, with options including polished, pickled, or sand-blasted finishes. These comprehensive quality control protocols ensure compliance with international standards including ASTM B898, ASME SB-898, and GB/T 8547, while maintaining the high performance characteristics expected from premium Titanium Clad Stainless Steel Plate.

Material Properties and Specifications

Dimensional Capabilities

Titanium Clad Stainless Steel Plate manufacturing accommodates a wide range of dimensional specifications to meet diverse industrial requirements. The cladding thickness can be precisely controlled from 0.5 mm to 20.0 mm, while the base material thickness ranges from 3.0 mm to 200 mm, providing exceptional versatility in product configuration. Width capabilities extend from 500 mm to 3000 mm, with length options available from 1000 mm to 12000 mm. These dimensional ranges allow for customization to specific application requirements while maintaining optimal performance characteristics. The manufacturing process ensures consistent thickness ratios between the cladding and base materials, which is crucial for maintaining the desired mechanical and corrosion-resistant properties across the entire surface area.

Material Selection Criteria

The selection of materials for both the cladding and base layers involves careful consideration of multiple factors. The titanium cladding typically utilizes Grade 1 or Grade 2 titanium, chosen for their optimal combination of corrosion resistance and mechanical properties. The base material selection encompasses various grades of stainless steel, with options including austenitic grades like 304 and 316, selected based on specific application requirements. Each material combination is evaluated for compatibility in terms of thermal expansion coefficients, mechanical properties, and intended service conditions. The manufacturing process accommodates these material variations through precise control of bonding parameters, ensuring optimal performance regardless of the specific grade combination selected.

Performance Characteristics

The performance characteristics of Titanium Clad Stainless Steel Plate are rigorously verified through comprehensive testing procedures. The composite material consistently demonstrates tensile strength values exceeding 320 MPa, with elongation capabilities of 20% or greater, ensuring excellent ductility and formability. Corrosion resistance testing involves exposure to various aggressive media, with results confirming superior protection compared to conventional materials. The bond integrity is verified through ultrasonic inspection and mechanical testing, ensuring shear strength values above 140 MPa. These performance characteristics are maintained across varying temperature ranges and service conditions, making the material suitable for demanding applications in chemical processing, marine environments, and aerospace applications.

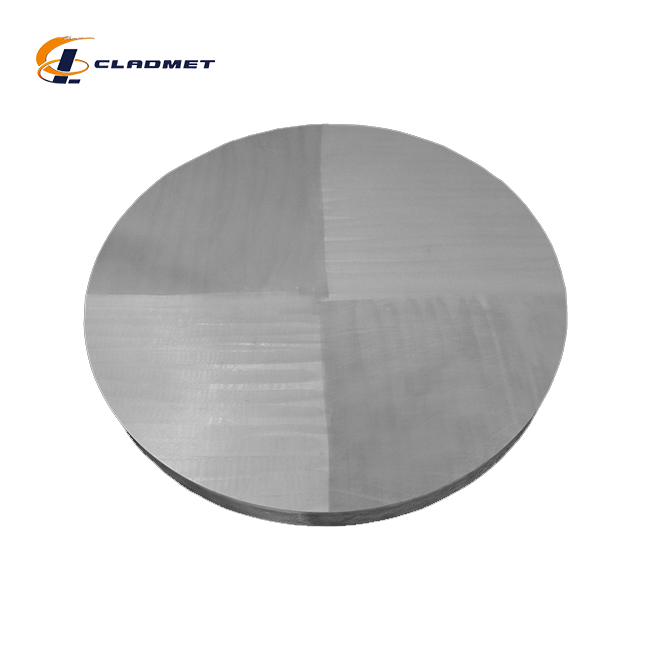

Titanium Clad Stainless Steel Plates

Industrial Applications and Implementation

Chemical Processing Applications

Titanium Clad Stainless Steel Plate finds extensive application in chemical processing facilities, where its unique properties provide exceptional value. The material excels in environments exposed to aggressive chemicals, acids, and corrosive compounds, where the titanium cladding provides superior resistance while the stainless steel base ensures structural integrity. In reactor vessels, heat exchangers, and storage tanks, the composite material demonstrates outstanding performance in maintaining process integrity while reducing maintenance requirements. The manufacturing process ensures consistent quality across large surface areas, making it ideal for equipment requiring extended service life under challenging chemical processing conditions. The material's resistance to various chemical compounds, combined with its mechanical strength, provides a cost-effective solution for maintaining process efficiency and safety.

Marine Engineering Solutions

In marine engineering applications, Titanium Clad Stainless Steel Plate offers unparalleled advantages for equipment exposed to seawater and marine environments. The material's exceptional resistance to saltwater corrosion, combined with its mechanical strength, makes it ideal for offshore platforms, desalination equipment, and marine vessels. The manufacturing process ensures complete bond integrity, crucial for preventing seawater infiltration between layers. The composite material's reduced weight compared to solid stainless steel construction provides additional benefits in marine installations, while maintaining the necessary strength and durability. Its proven performance in marine environments has led to widespread adoption in critical applications where failure is not an option.

Aerospace Industry Implementation

The aerospace industry leverages the unique properties of Titanium Clad Stainless Steel Plate in various critical applications. The material's combination of light weight and high strength makes it particularly valuable in aircraft components and spacecraft structures. The manufacturing process ensures consistent quality and reliability, essential for aerospace applications where safety and performance are paramount. The material's resistance to extreme temperatures and pressure variations, coupled with its excellent fatigue resistance, provides long-term reliability in aerospace applications. The ability to customize dimensions and specifications allows for precise matching of material properties to specific aerospace requirements, while maintaining compliance with rigorous industry standards.

Conclusion

The manufacturing of Titanium Clad Stainless Steel Plate represents a pinnacle of metallurgical engineering, combining advanced bonding technologies with precise quality control to create a superior composite material. The process ensures exceptional performance characteristics while maintaining cost-effectiveness and reliability across diverse industrial applications.
