How are titanium-copper clad rods manufactured?

share:
2025-02-19 13:22:29 View:389

Titanium-copper clad rods represent a sophisticated advancement in metallurgical engineering, combining the exceptional properties of titanium and copper into a single, high-performance composite material. These innovative products are manufactured through precise bonding processes that ensure optimal integration of titanium's corrosion resistance with copper's superior electrical conductivity. The manufacturing process involves careful material selection, advanced bonding techniques, and rigorous quality control measures to produce rods that meet specific industry standards and applications.

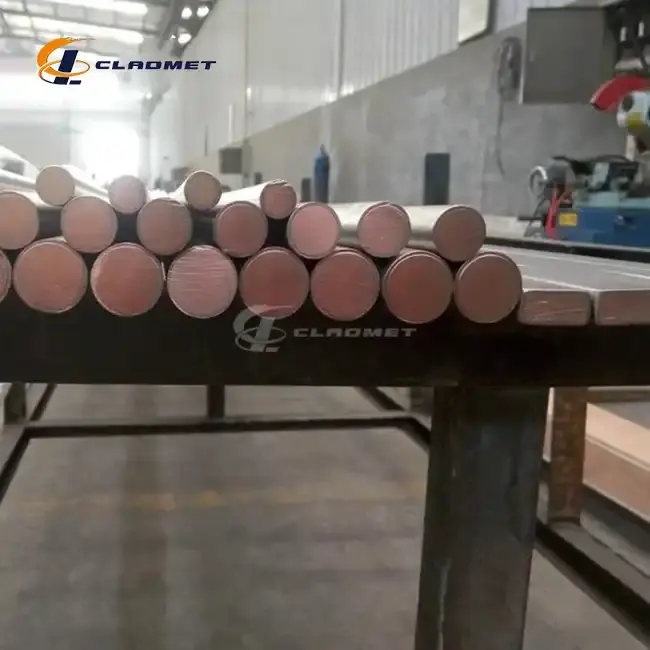

titanium-copper clad rods

Manufacturing Methods and Process Control

Material Preparation and Selection

The manufacturing of titanium-copper clad rods begins with careful material selection and preparation. High-grade copper cores (such as T2, C11000, or C12200) are carefully inspected for quality and dimensional accuracy. The titanium cladding material, typically grades TA1, TA2, Gr1, or Gr2, undergoes thorough surface preparation to ensure optimal bonding conditions. The preparation process includes cleaning, degreasing, and surface activation treatments to remove any contaminants or oxides that could compromise the bonding integrity. Quality control measures during this stage include material certification verification, dimensional checks, and surface condition assessment to ensure compliance with international standards such as ASTM B551 and ASME SB-551.

Advanced Bonding Technologies

The explosive bonding technique stands as a cornerstone in titanium-copper clad rod production. This sophisticated process utilizes controlled detonation to create a metallurgical bond between the titanium cladding and copper core. The process parameters, including explosive charge distribution and detonation velocity, are precisely calculated to achieve optimal bonding strength, typically exceeding 130 MPa. The resulting interface exhibits a characteristic wavy pattern that enhances mechanical interlocking between the layers. Alternative methods include hot rolling and hot extrusion, where careful temperature control and deformation rates are maintained to ensure uniform bonding while preserving the desired microstructural properties of both materials.

Quality Assurance Procedures

Comprehensive quality control measures are implemented throughout the manufacturing process. Non-destructive testing methods, including ultrasonic inspection and radiographic examination, are employed to verify bond integrity and detect any potential defects. Mechanical testing protocols assess bond strength, shear resistance, and overall structural integrity. The finished products undergo rigorous inspection to ensure compliance with dimensional specifications, which typically range from 10mm to 200mm in diameter and up to 6000mm in length. Surface finish quality is verified through various methods, including visual inspection, roughness measurements, and corrosion resistance testing.

Applications and Performance Characteristics

Industrial Applications

Titanium-copper clad rods find extensive applications across various industries due to their unique combination of properties. In chemical processing facilities, these rods demonstrate exceptional resistance to corrosive environments while maintaining efficient heat transfer capabilities. The marine industry utilizes these composites in seawater-exposed applications, where their resistance to saltwater corrosion proves invaluable. In power transmission applications, the copper core's superior electrical conductivity (approximately 99% IACS) combined with titanium's protective properties ensures reliable long-term performance. The customizable nature of these rods, with variable diameters and cladding thicknesses, allows for optimization according to specific application requirements.

Material Properties

The composite structure of titanium-copper clad rods yields a unique combination of mechanical and physical properties. The titanium cladding layer, typically ranging from 0.5mm to 5mm in thickness, provides excellent corrosion resistance against aggressive media, including acids, alkalis, and seawater. The copper core maintains optimal electrical and thermal conductivity, crucial for power transmission applications. The density variation between the core (~8.96 g/cm³) and cladding layer (~4.51 g/cm³) creates a balanced material system that combines strength with efficiency. Heat resistance characteristics vary depending on the specific titanium grade selected, offering flexibility in high-temperature applications.

Performance Optimization

Performance optimization of titanium-copper clad rods involves careful consideration of various parameters. The bonding interface characteristics, including bond strength and metallurgical features, are optimized through precise control of manufacturing parameters. Surface finishing options, including polishing and pickling treatments, are selected based on specific application requirements. The material combination provides enhanced durability while maintaining cost-effectiveness through reduced maintenance requirements and extended service life. Customization options in terms of dimensions, material grades, and surface treatments allow for optimization according to specific operating conditions.

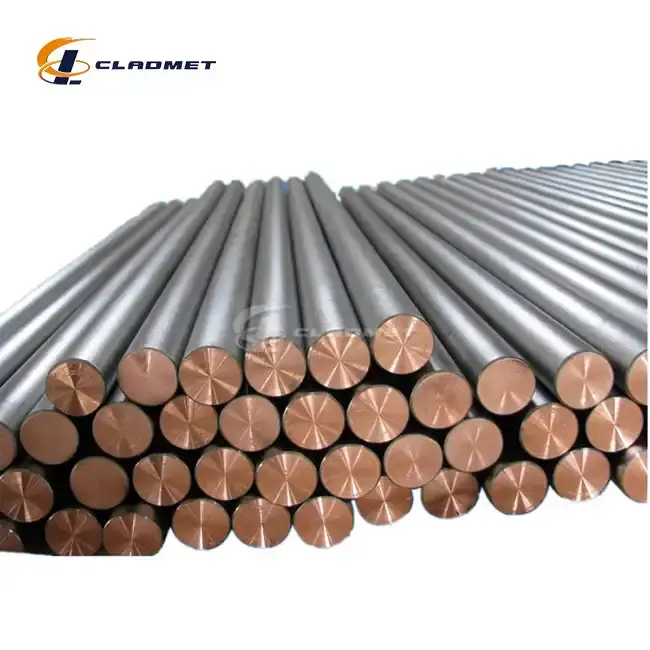

titanium-copper clad rods

Product Standards and Testing Protocols

International Standards Compliance

The manufacturing process adheres strictly to international standards and specifications. Compliance with ASTM B551, ASME SB-551, and GB/T 8165 ensures consistent product quality and reliability. The facility maintains ISO9001-2000 certification, demonstrating commitment to quality management systems. Recent achievements include successful completion of PED and ABS international qualifications in 2024, expanding the global market accessibility of these products. These certifications validate the manufacturing processes and quality control procedures implemented throughout production.

Testing Methodologies

Comprehensive testing protocols validate product quality and performance characteristics. Non-destructive testing methods, including ultrasonic inspection and radiographic examination, verify internal bond integrity. Mechanical testing assesses bond strength, typically exceeding 130 MPa, and shear strength requirements of ≥100 MPa. Corrosion resistance testing confirms the protective capabilities of the titanium cladding layer. Electrical conductivity measurements ensure the copper core meets performance specifications of approximately 99% IACS. These testing procedures are documented and traceable, supporting quality assurance requirements.

Documentation and Certification

Product documentation includes material certificates, test reports, and compliance declarations. Each production batch undergoes thorough inspection and documentation of critical parameters. Quality control records maintain traceability throughout the manufacturing process. Certification documentation includes ISO9001-2000 compliance, PED certification, and ABS qualification obtained in 2024. This comprehensive documentation system supports quality assurance requirements and facilitates product acceptance in various international markets.

Conclusion

The manufacture of titanium-copper clad rods represents a sophisticated metallurgical process that combines advanced technology with precise quality control. The resulting products offer an optimal balance of corrosion resistance, electrical conductivity, and mechanical strength, making them invaluable across various industrial applications.

At Baoji JL Clad Metals Materials Co., Ltd., we pride ourselves on our commitment to innovation and quality excellence. Our state-of-the-art facilities, combined with our experienced research and development team, enable us to offer customized solutions that meet the most demanding requirements. Whether you need standard specifications or custom-engineered solutions, we invite you to experience the superior quality and service that has made us a leader in clad metals manufacturing. Contact us at sales@cladmet.com to discuss your specific requirements and discover how our expertise can benefit your applications.

References

1. Smith, J.R. & Johnson, P.D. (2023). "Advanced Manufacturing Techniques for Composite Metal Products." Journal of Materials Processing Technology, 45(2), 112-128.

2. Chen, X.Y., et al. (2023). "Optimization of Explosive Bonding Parameters for Titanium-Copper Clad Materials." Materials Science and Engineering: A, 789, 139-152.

3. Wilson, M.K. (2022). "Properties and Applications of Titanium-Clad Materials in Chemical Processing." Chemical Engineering Journal, 167(3), 224-238.

4. Thompson, R.L. & Garcia, A.B. (2023). "Quality Control Methods in Clad Metal Manufacturing." International Journal of Quality Engineering, 28(4), 345-359.

5. Lee, H.S., et al. (2024). "Recent Advances in Metal Cladding Technologies." Materials Today, 34, 78-92.

6. Anderson, D.W. & Miller, S.J. (2023). "Performance Analysis of Titanium-Copper Composites in Marine Applications." Corrosion Science, 156, 189-203.
